METALJET D2+ INSTALLATION
Revision 19, November 2016 Page 4-19
4.3.2.9 MetalJet D2+ 160 kV
The high-voltage generator is external in MetalJet D2+ 160 kV systems and connect to the x-ray high-voltage
controller, see Figure 4-22.

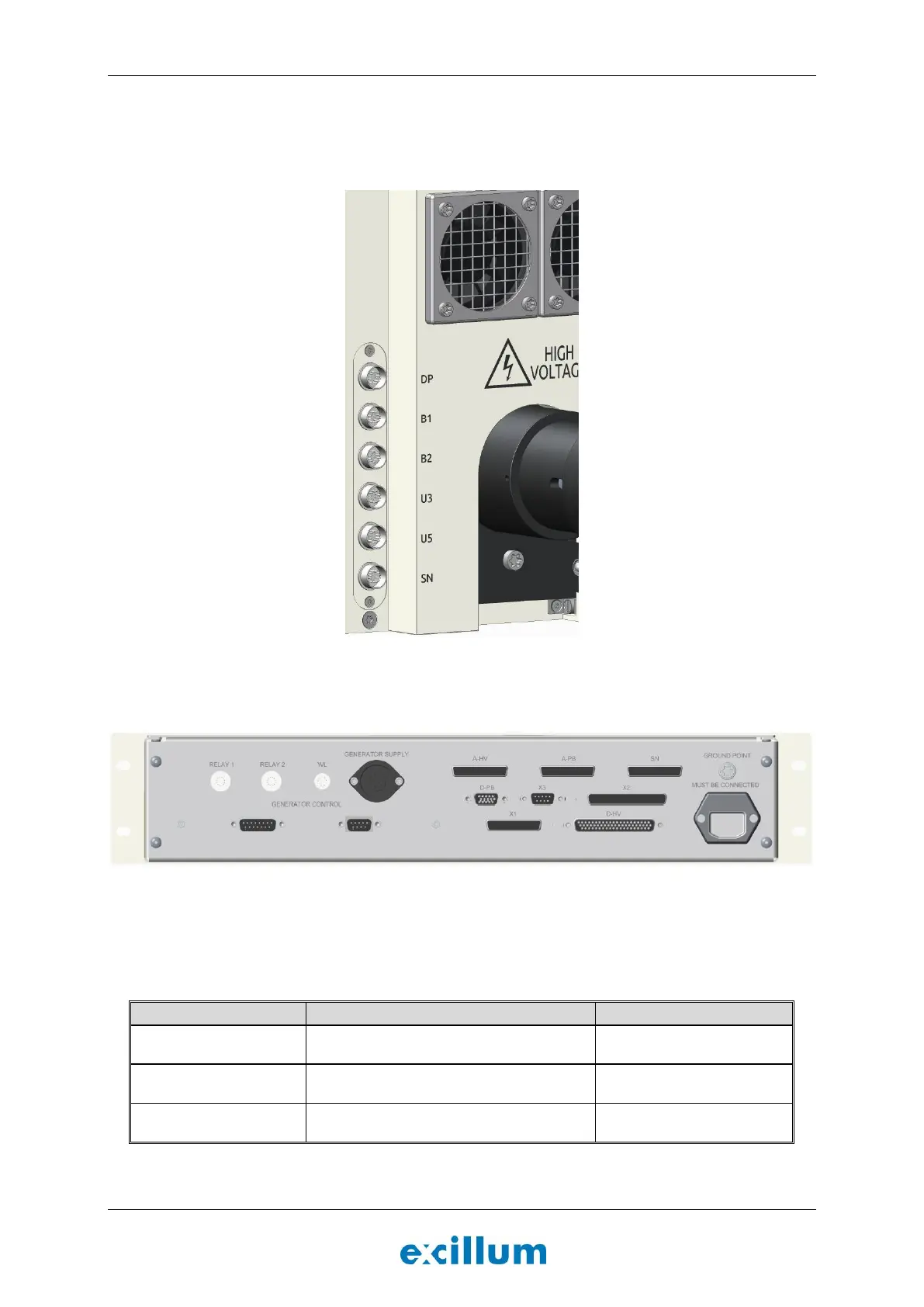

Figure 4-21. X-ray head from behind showing connectors to x-ray system controller and x-ray high-voltage
controller (left side).
Figure 4-22. X-ray high-voltage controller seen from behind.
1. Connect all interconnecting cables between x-ray high-voltage controller and the high-voltage
generator according to Table 4-2 below.
Cable part number
Port 1
Port 2
E-009-0188 (1 m)
9-Pin D-sub GENERATOR CONTROL
(x-ray high-voltage controller)
RS-232
(high-voltage generator)
E-009-0189 (1 m)
15-Pin D-sub GENERATOR CONTROL
(x-ray high-voltage controller)
JB1
(high-voltage generator)
E-009-0194 (1 m)
GENERATOR SUPPLY
(x-ray system controller)
J2
(high-voltage generator)
Table 4-2. Interconnecting cables between x-ray high-voltage controller and high-voltage generator.
