The system can also be configured to operate either with or without an x-ray shutter. When operated without a
shutter it can be configured with a standard exit window or an exit window with an increased cone angle. The
figures in Sections 1.3.3.1-1.3.3.3 show minimum source-to-object distance, exit window diameter and x-ray
emission cone angle for each of these configurations.
1.3.3.1 With x-ray shutter

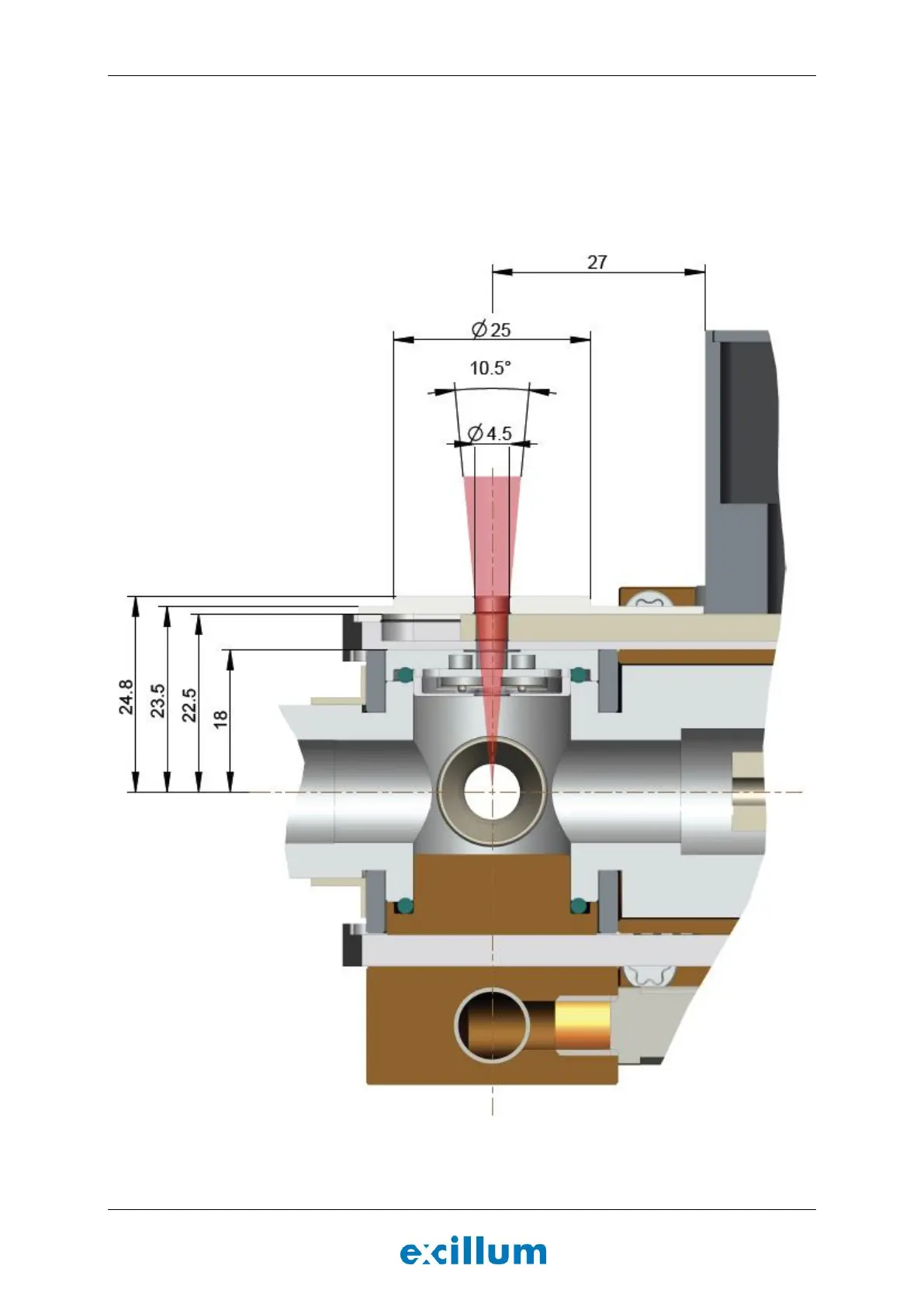

Figure 1-4. Schematic of the x-ray head with x-ray shutter mounted.
