METALJET D2+ INTRODUCTION
Revision 19, November 2016 Page 1-9
1.3.3.3 Without x-ray shutter using increased cone angle exit window

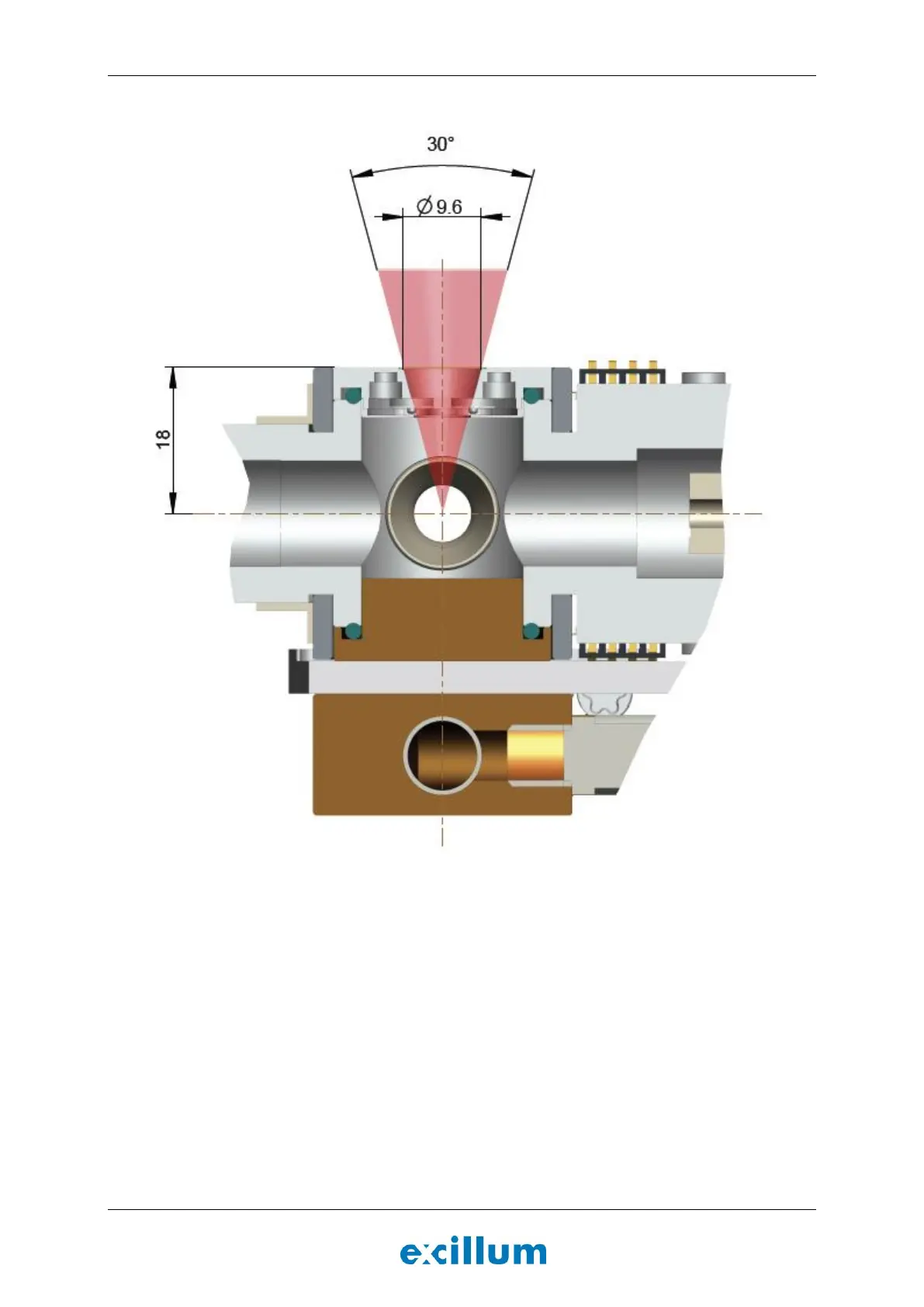

Figure 1-6. Schematic of the x-ray head without x-ray shutter using increased cone angle exit window.
