Managing Data

FTB-500 145

Transferring Data via Bluetooth

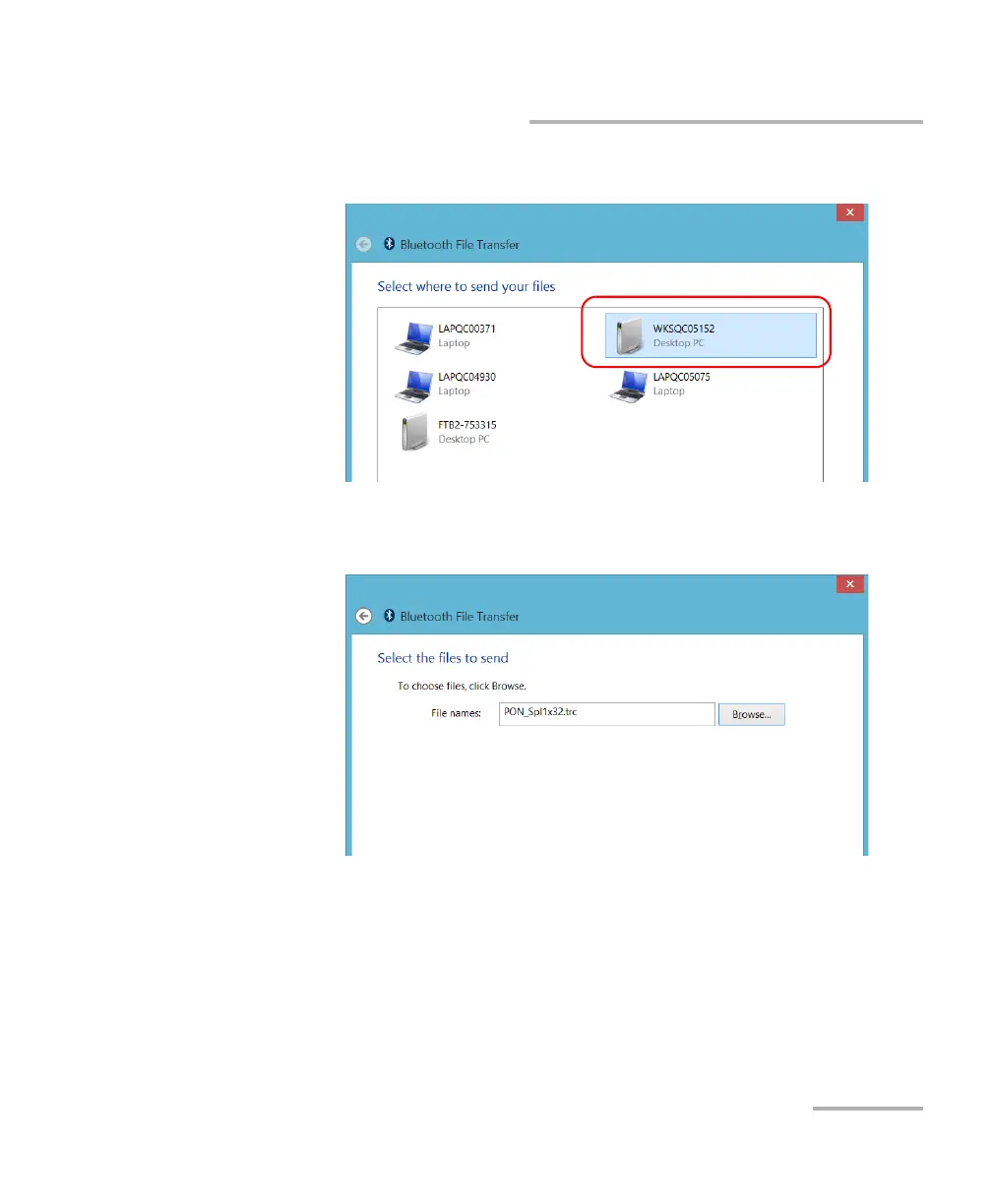

3d. Select the desired computer, and then tap Next.

3e. Tap the Browse button to select the file that you want to transfer,

and then tap Next.

3f. Tap Finish when the transfer is complete.
