Preparing for Automation

FTB-500 209

Configuring DCOM Access to Your Unit

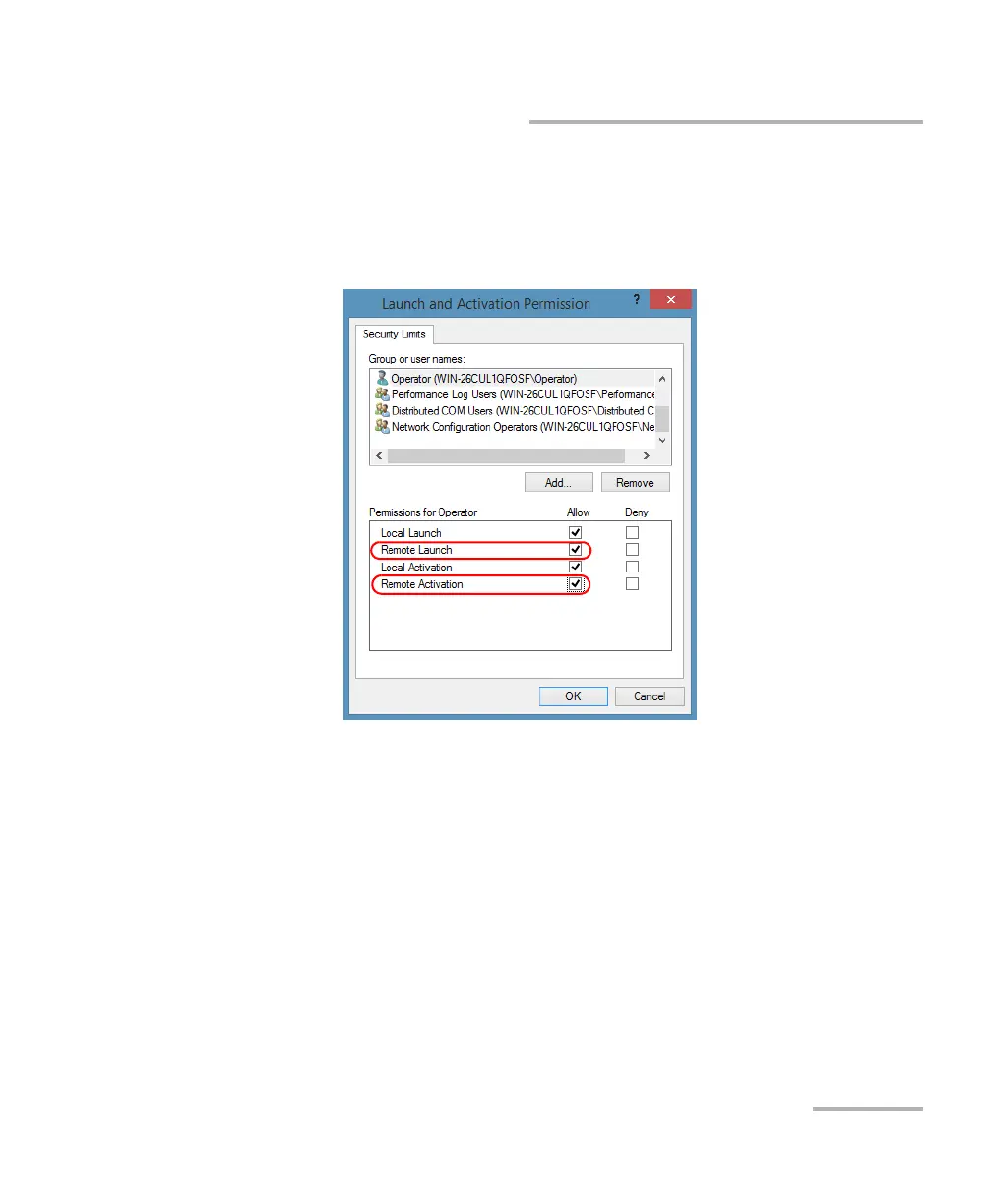

12. Confirm the newly added user has Remote Launch and Remote

Activation permissions as follows:

12a.In the Launch Permission dialog box, select the name of the new

user.

12b.Under Permissions for (new user), ensure Allow is selected for

both Remote Launch and Remote Activation.

12c. Tap OK.
