Preparing for Automation

226 FTB-500

Preparing to Control Modules with a Dedicated Application

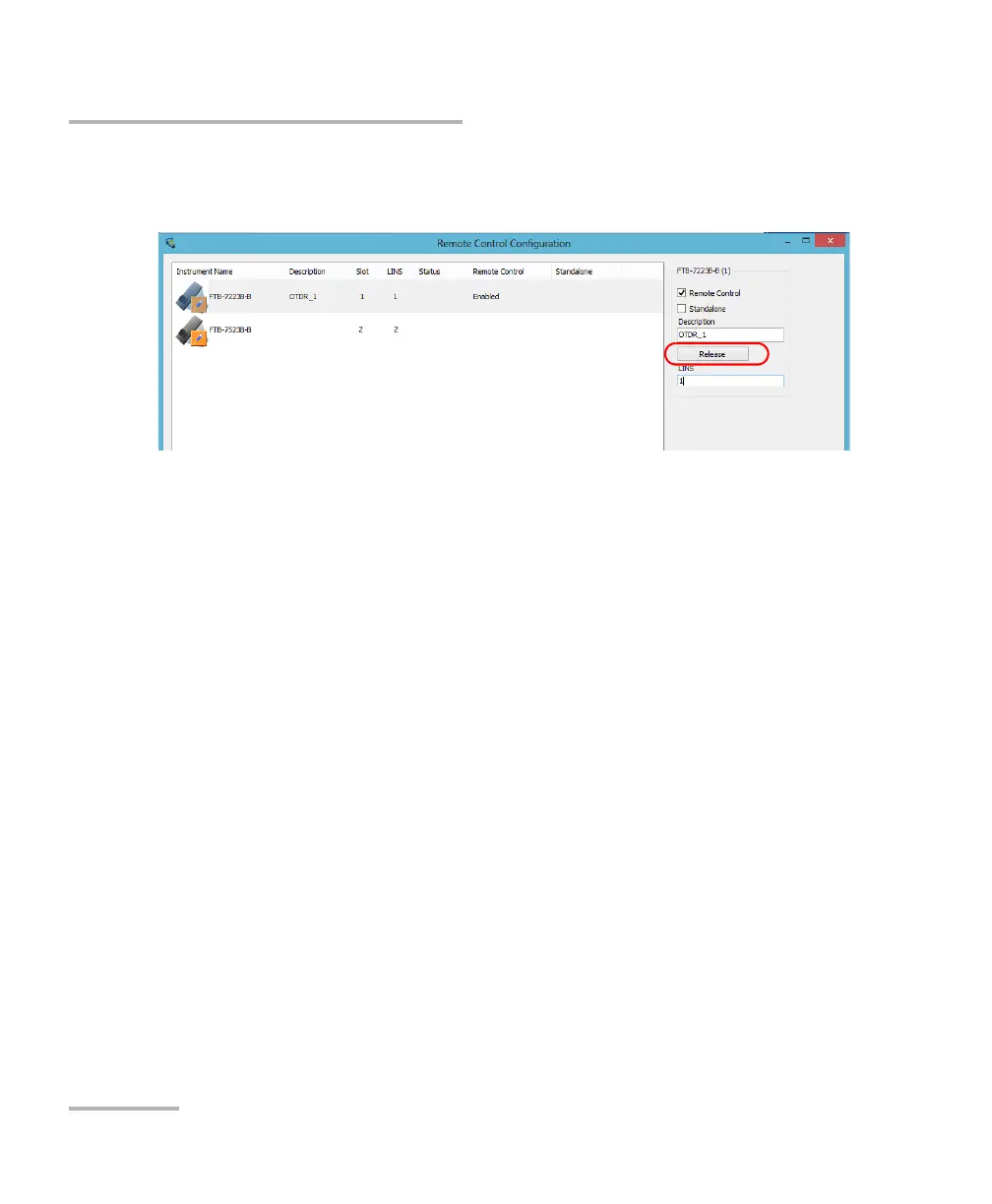

To release the remotely-controlled module:

Tap Release.
