Troubleshooting

FTB-500 295

Restoring Your Unit to Normal Operation

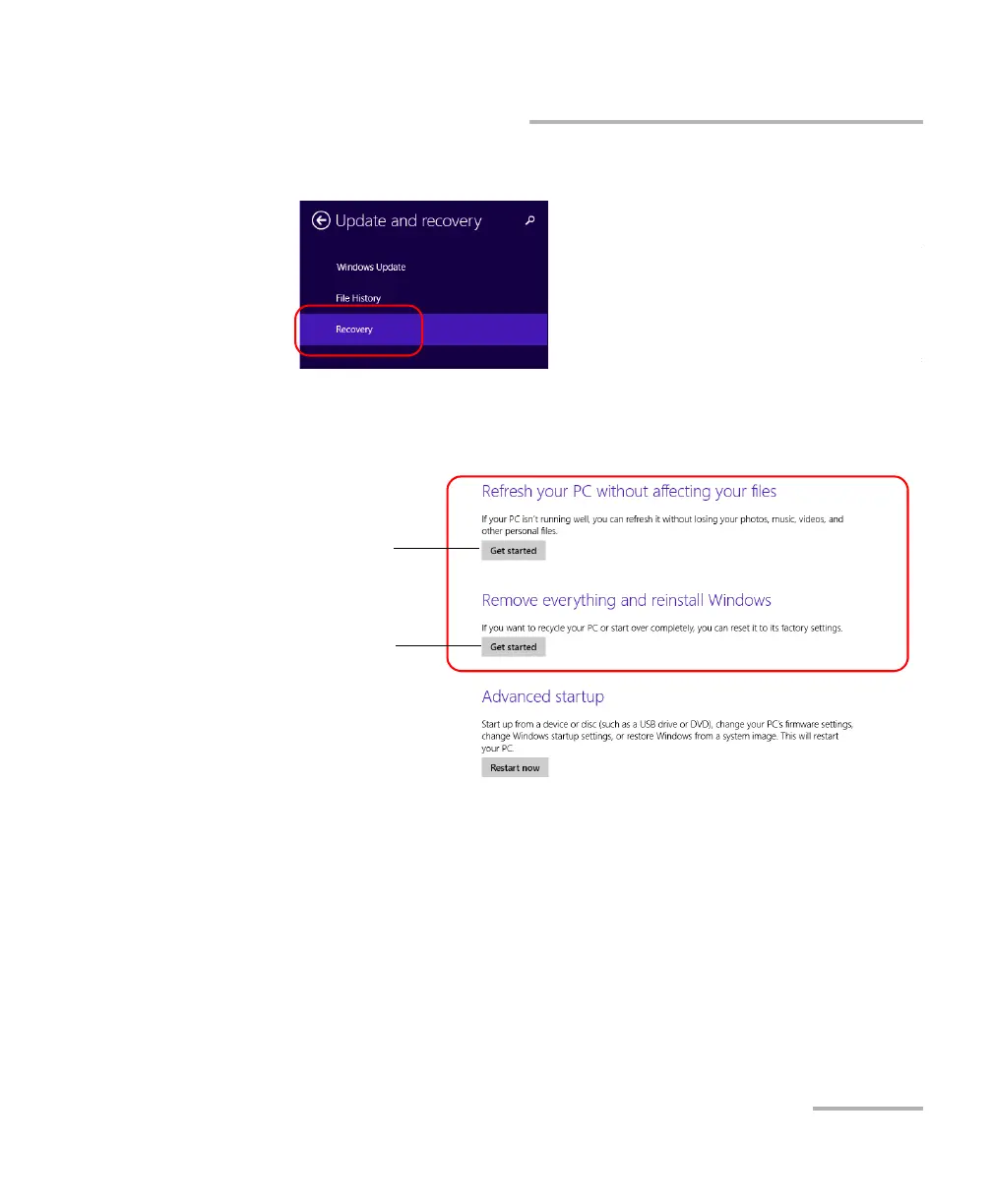

6. Tap Recovery.

7. If you want to refresh or reset your unit, proceed as follows:

7a. Tap the Get started button corresponding to your choice.

7b. Follow the on-screen instructions.

To refresh your unit

To reset your unit
