Troubleshooting

296 FTB-500

Restoring Your Unit to Normal Operation

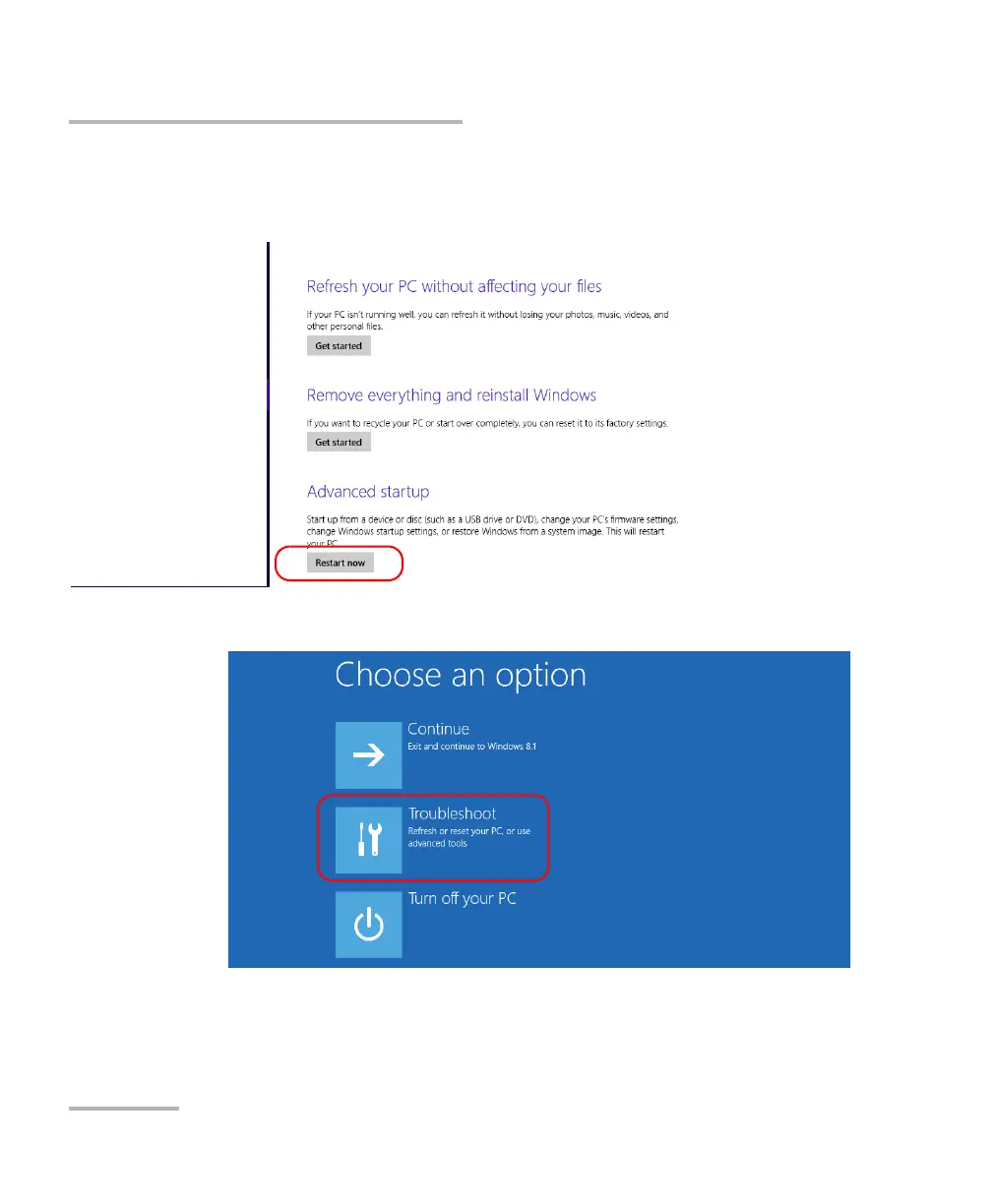

8. If you want to restore your unit (with a WIM file), proceed as follows:

8a. Under Advanced Startup, tap Restart now.

8b. Under Choose an option, tap Troubleshoot.
