Troubleshooting

FTB-500 297

Restoring Your Unit to Normal Operation

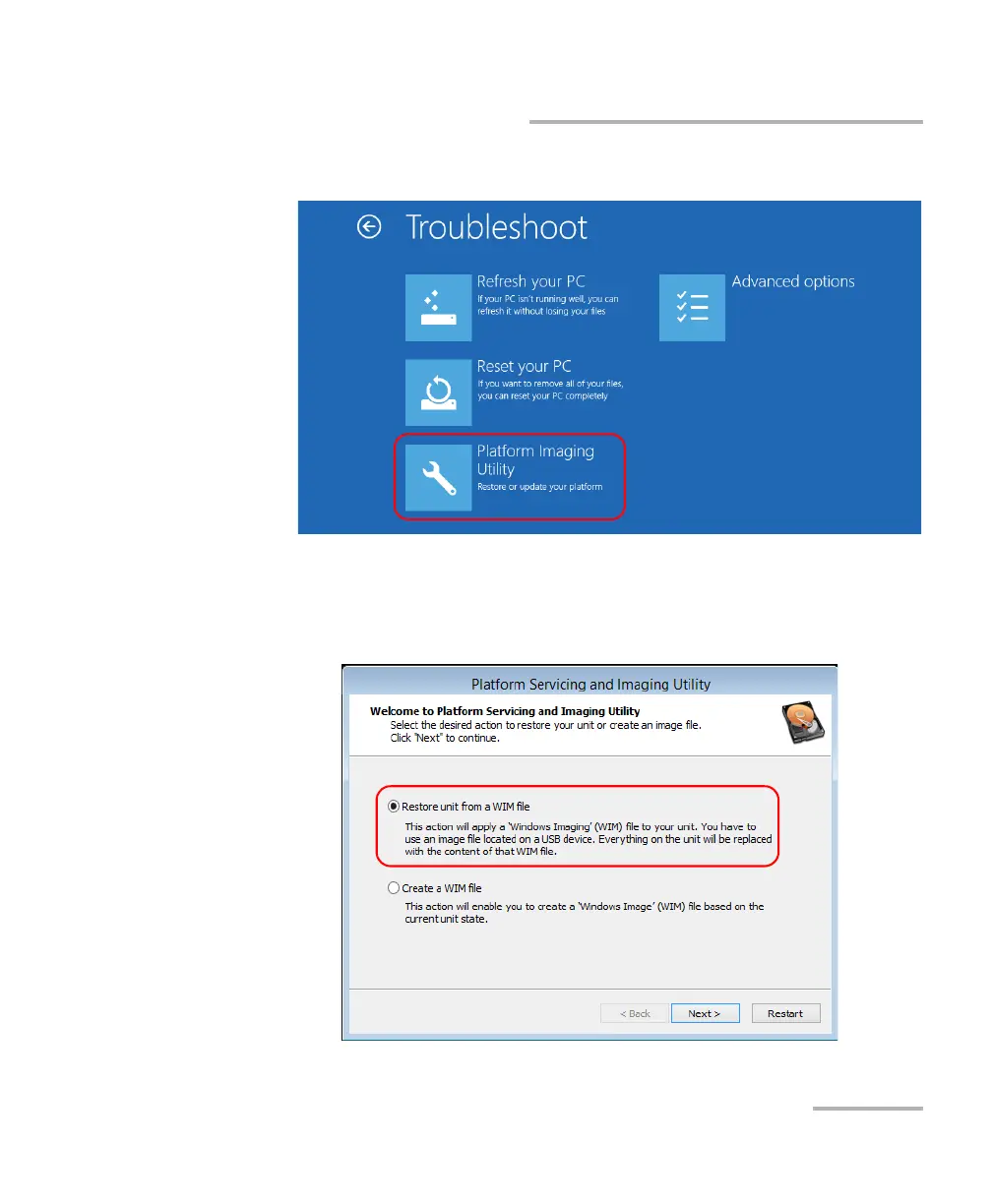

9. Tap Platform Imaging Utility to display the corresponding application.

9a. Connect the USB key with the desired WIM file to your unit.

9b. From the Platform Servicing and Imaging Utility wizard, select

Restore unit from a WIM file, and then tap Next.
