Troubleshooting

FTB-500 303

Restoring Your Unit to Normal Operation

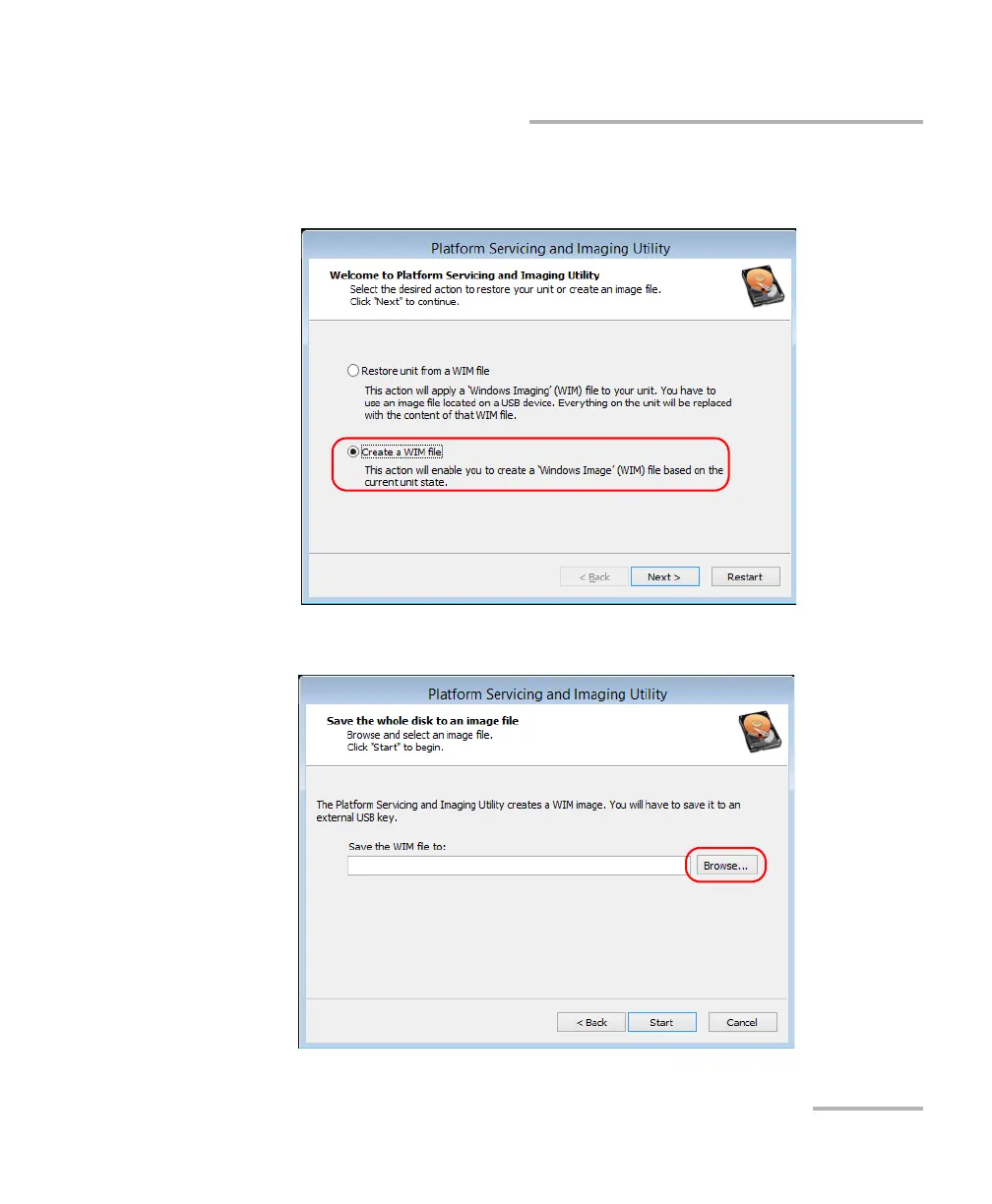

9. From the Platform Servicing and Imaging Utility wizard, select Create a

WIM file, an then tap Next.

10. Tap Browse.
