Troubleshooting

302 FTB-500

Restoring Your Unit to Normal Operation

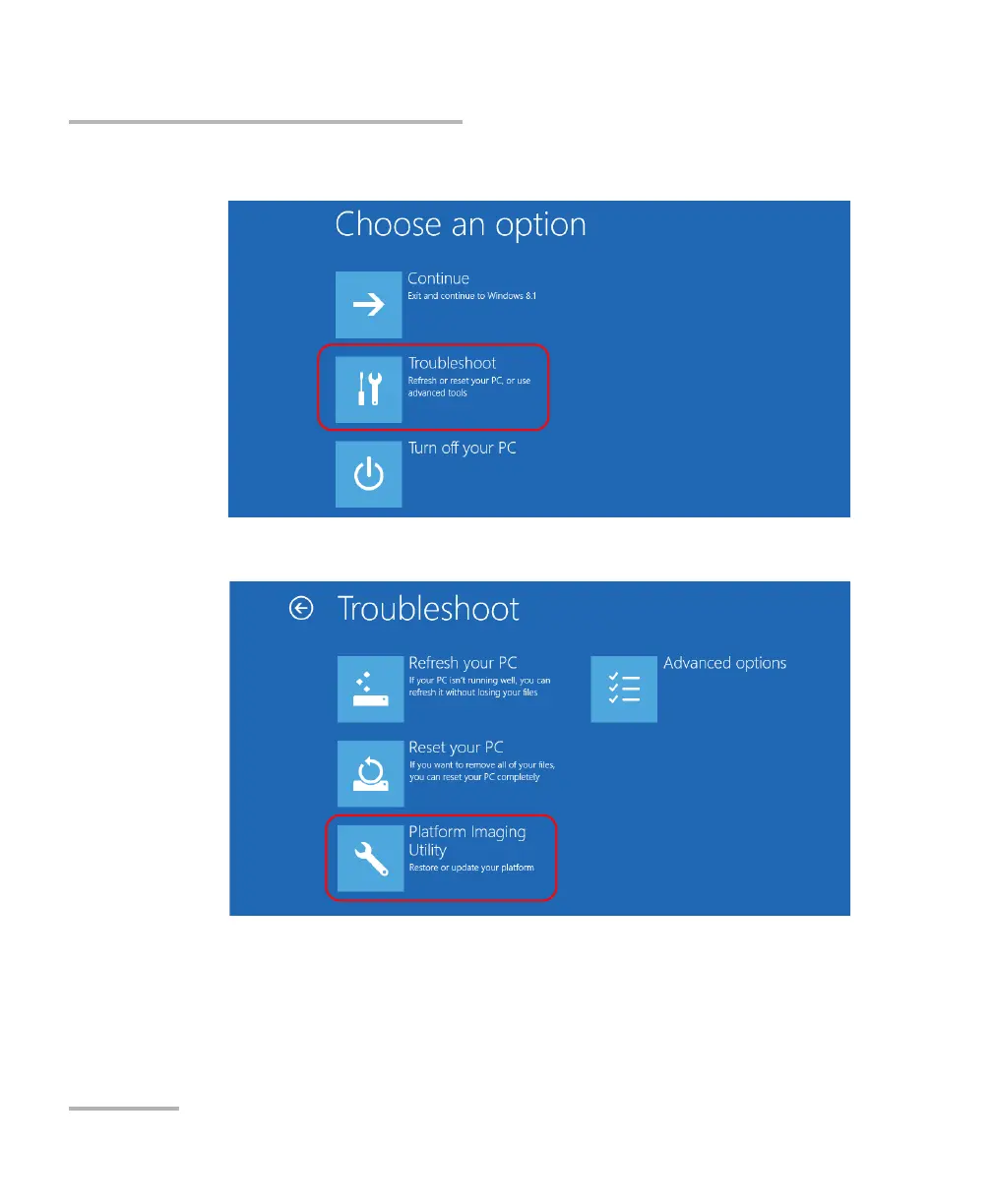

6. Under Choose an option, tap Troubleshoot.

7. Tap Platform Imaging Utility to display the corresponding application.

8. Connect a USB key to your unit.
