Troubleshooting

FTB-500 301

Restoring Your Unit to Normal Operation

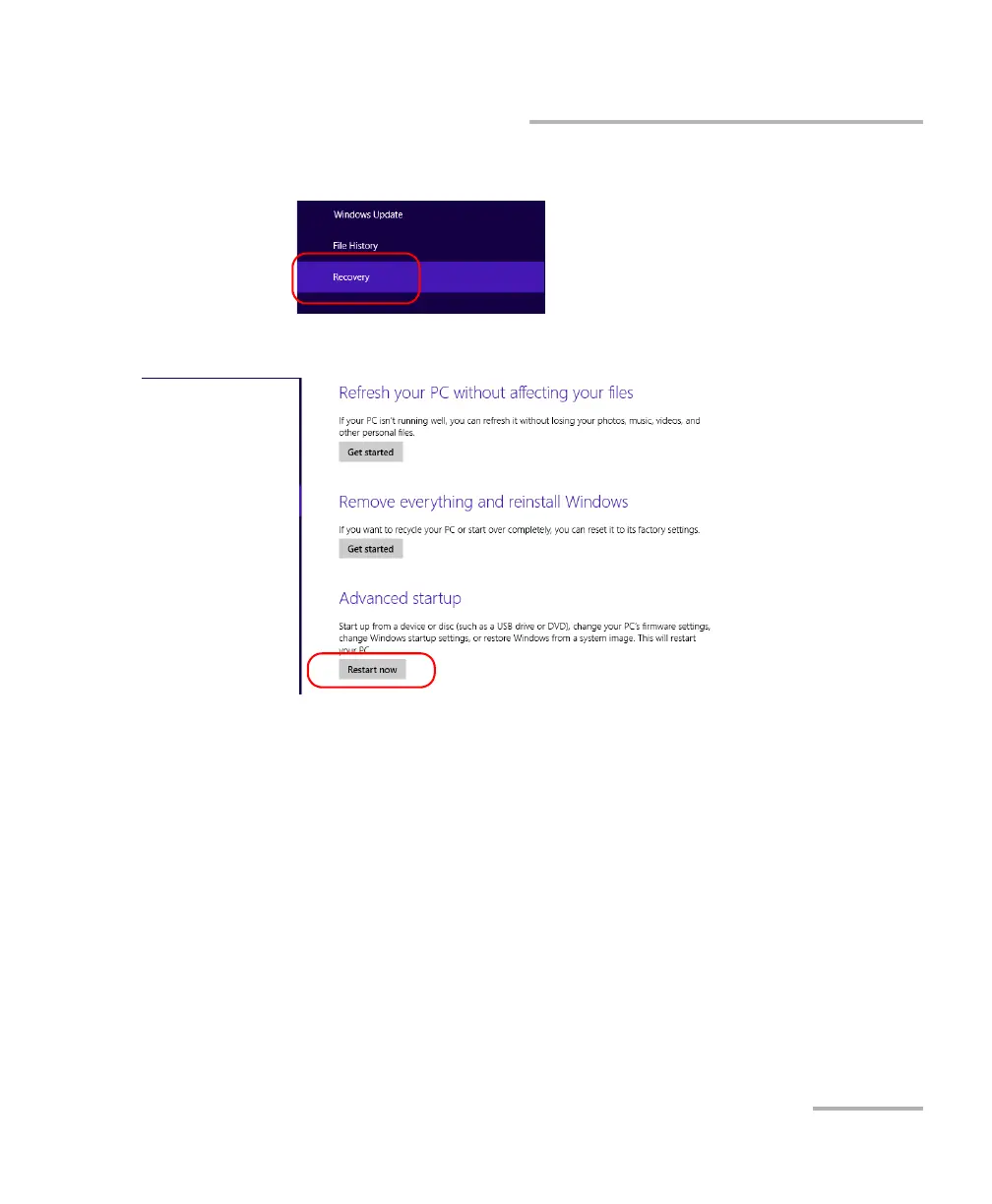

4. Tap Recovery.

5. Under Advanced Startup, tap Restart now.
