Getting Started with Your Unit

FTB-500 59

Configuring an External Monitor

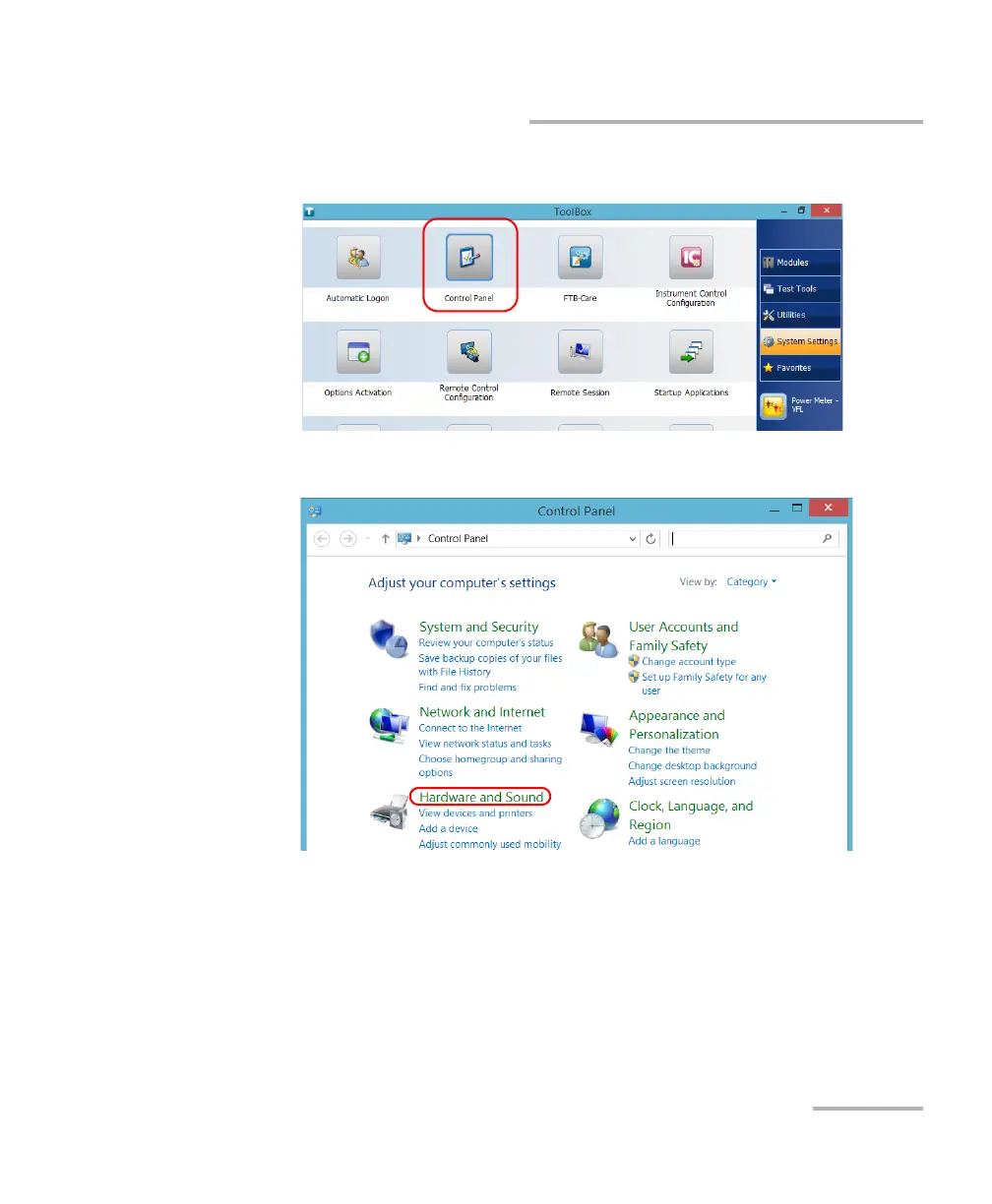

3. Tap Control Panel.

4. Tap Hardware and Sound.
