Getting Started with Your Unit

60 FTB-500

Configuring an External Monitor

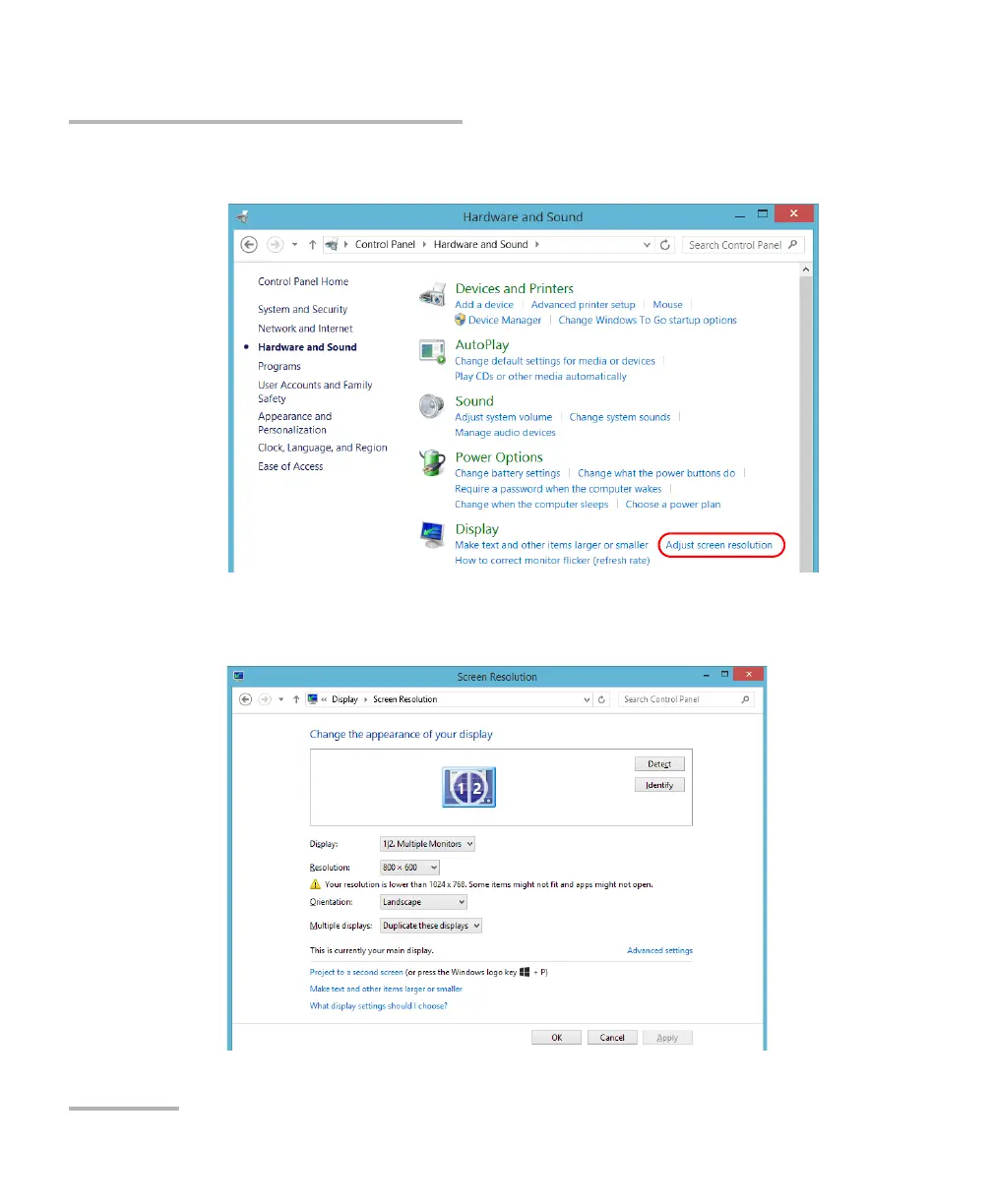

5. Under Display, tap Adjust screen resolution.

6. Set the parameters according to your needs, and then tap OK to

confirm.
