Setting Up Your FTB-500

72 FTB-500

Customizing the Right-Click Feature

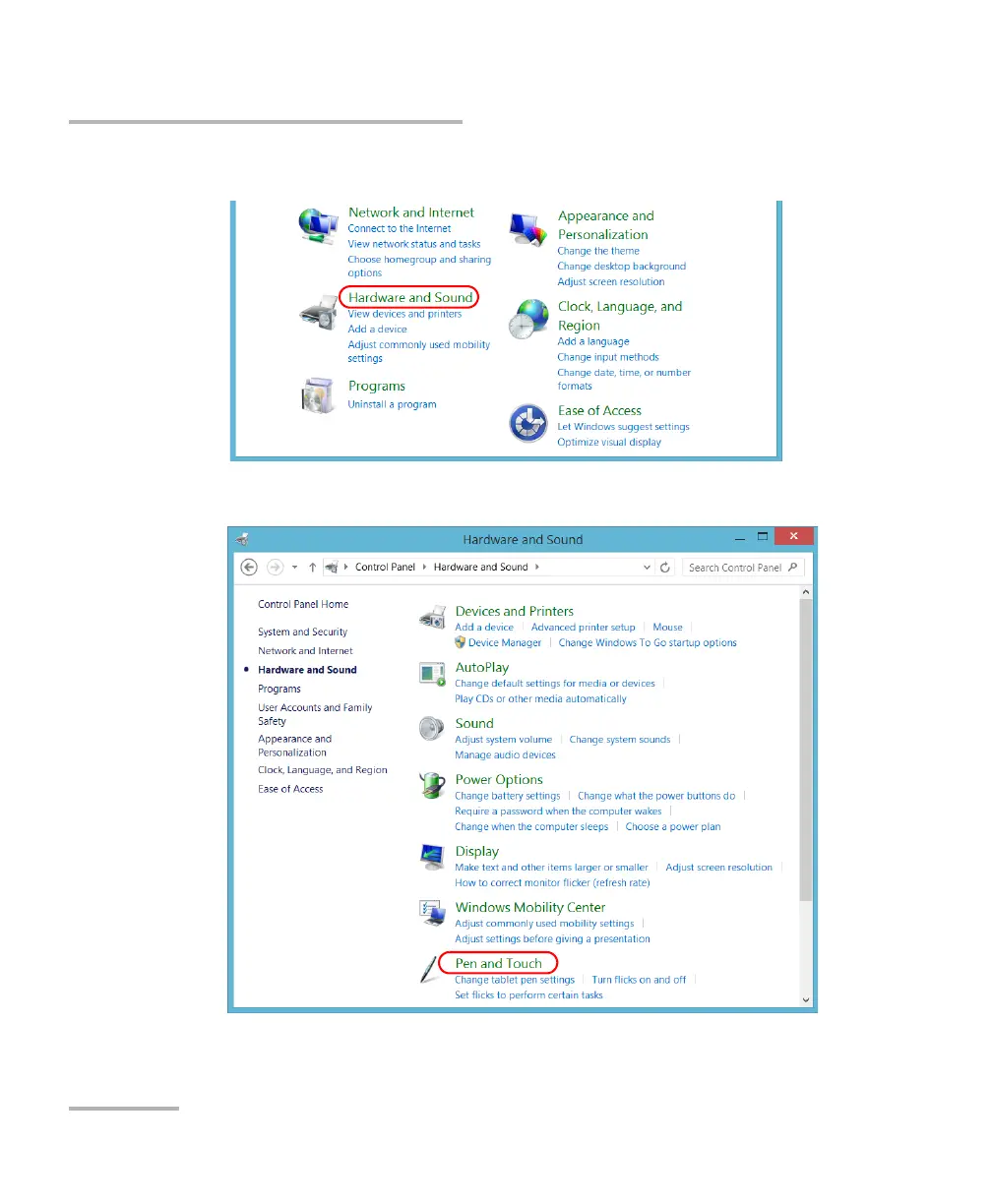

3. Tap Hardware and Sound.

4. Tap Pen and Touch.
