Setting Up Your FTB-500

74 FTB-500

Customizing the Right-Click Feature

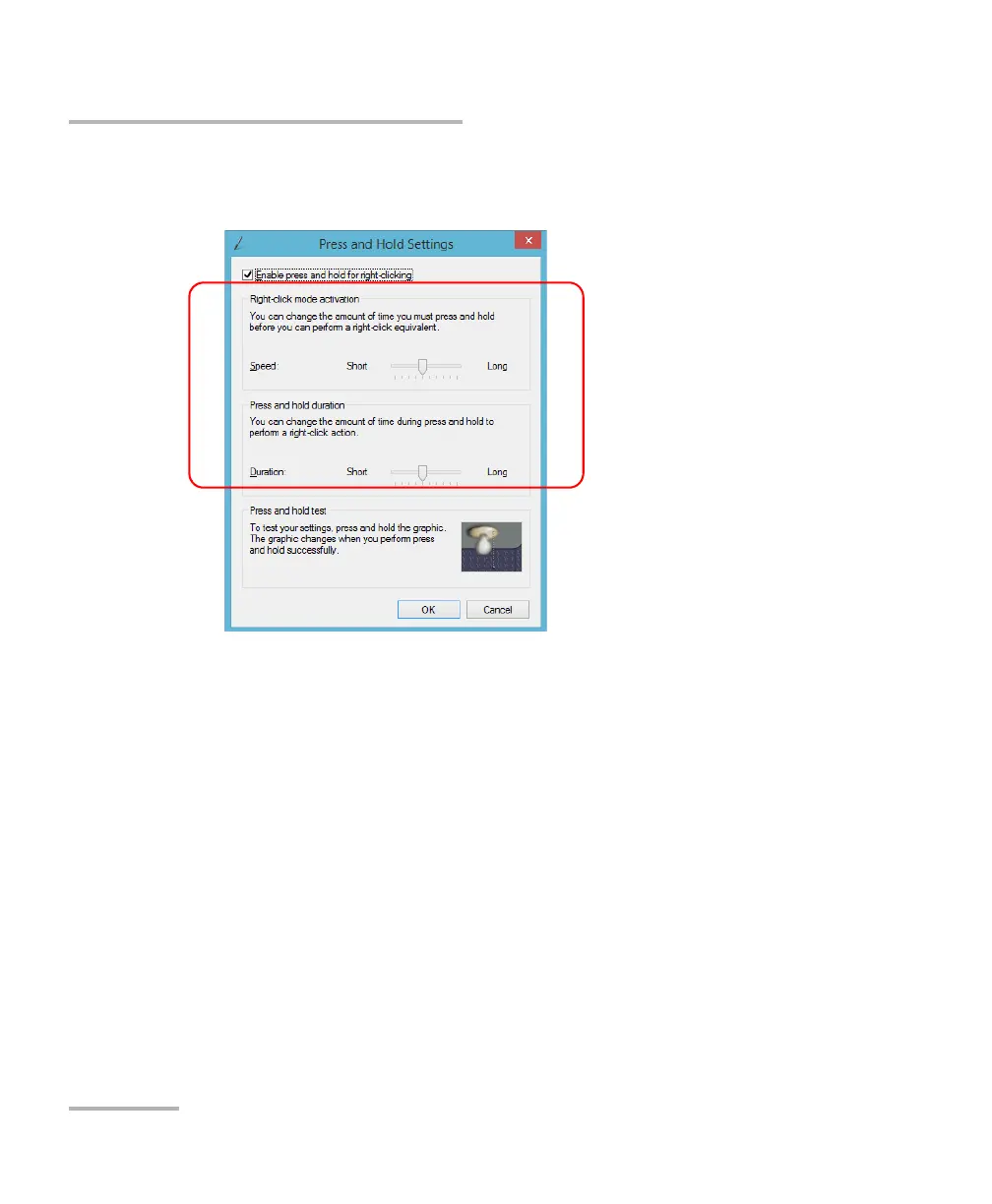

8. If you want to modify the response time of the right-click, move the

Speed or Duration sliders to adjust the configuration to your needs.

9. Tap OK to confirm your changes.
