Setting Up Your FTB-500

FTB-500 85

Selecting the Language of Operation

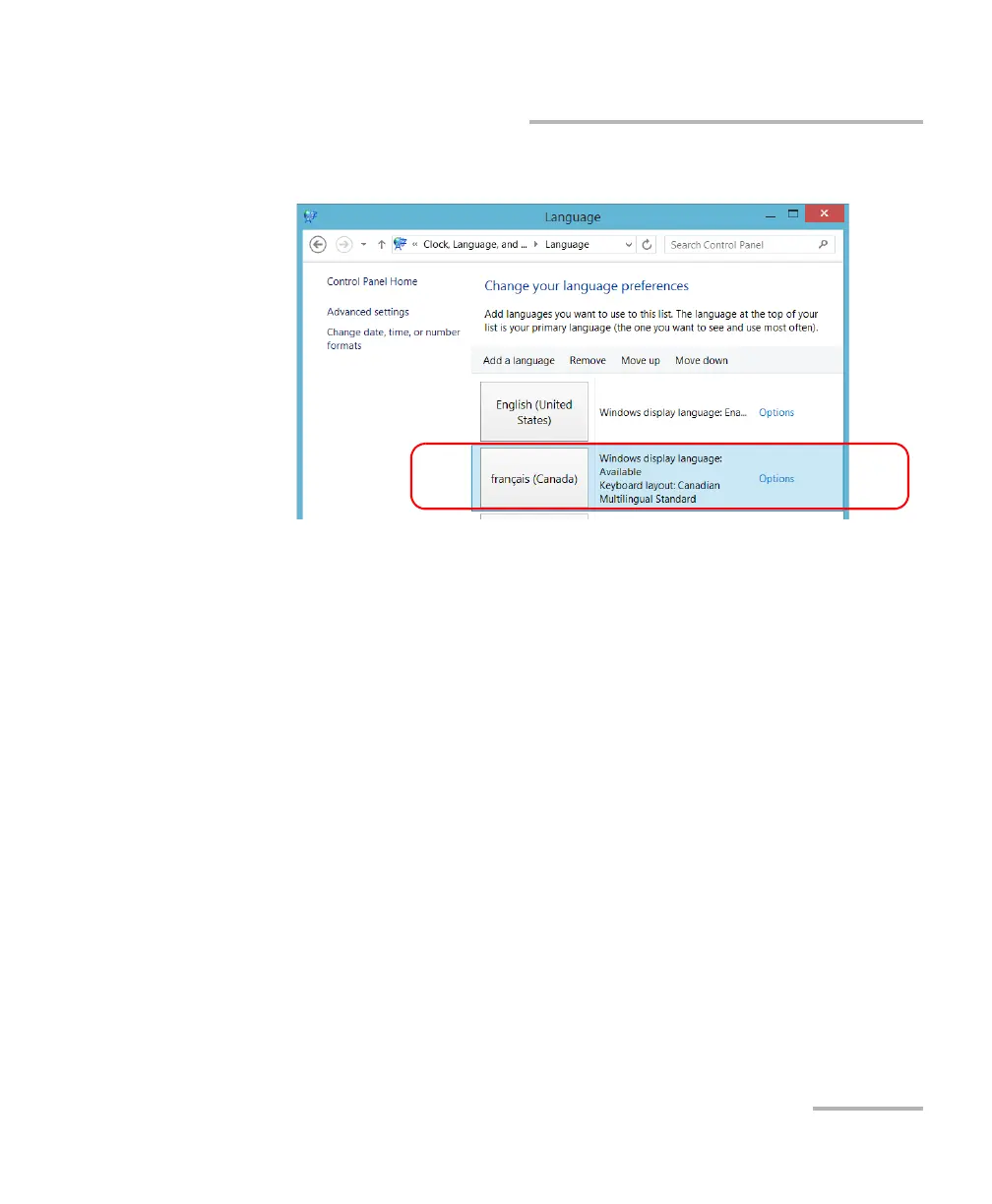

4. Select the desired language from the list.

5. Tap Options.
