Setting Up Your FTB-500

FTB-500 89

Selecting the Language of Operation

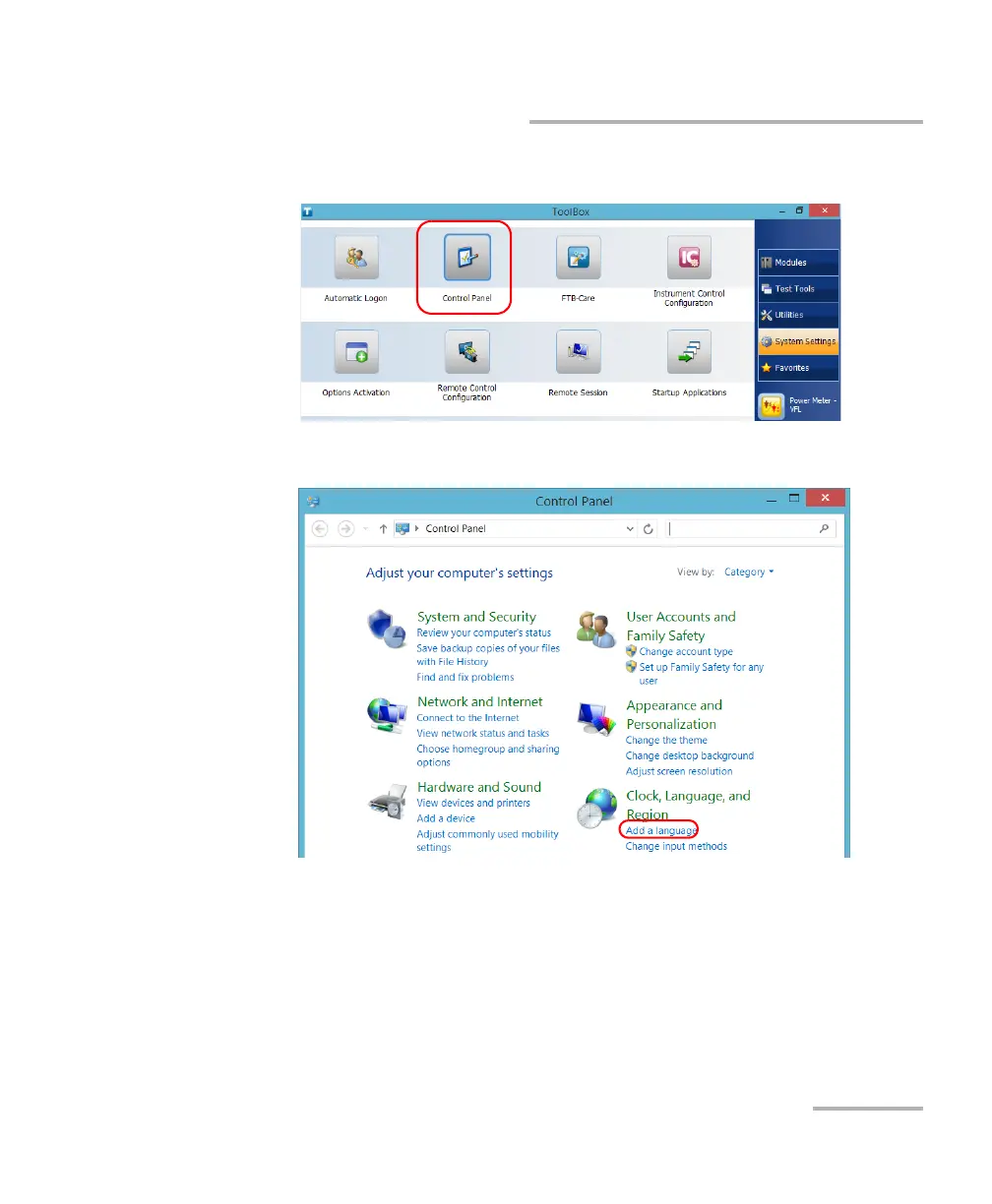

3. Tap Control Panel.

4. Under Clock, Language, and Region, tap Add a language.
