Extron electronics MLC 62 Series - Mounting the MLC 62 EU

MLC 62 Series • Hardware Setup
Hardware Setup, cont’d
2-18
Wall
2.16"
3.73"
Wall Mounting
Bracket

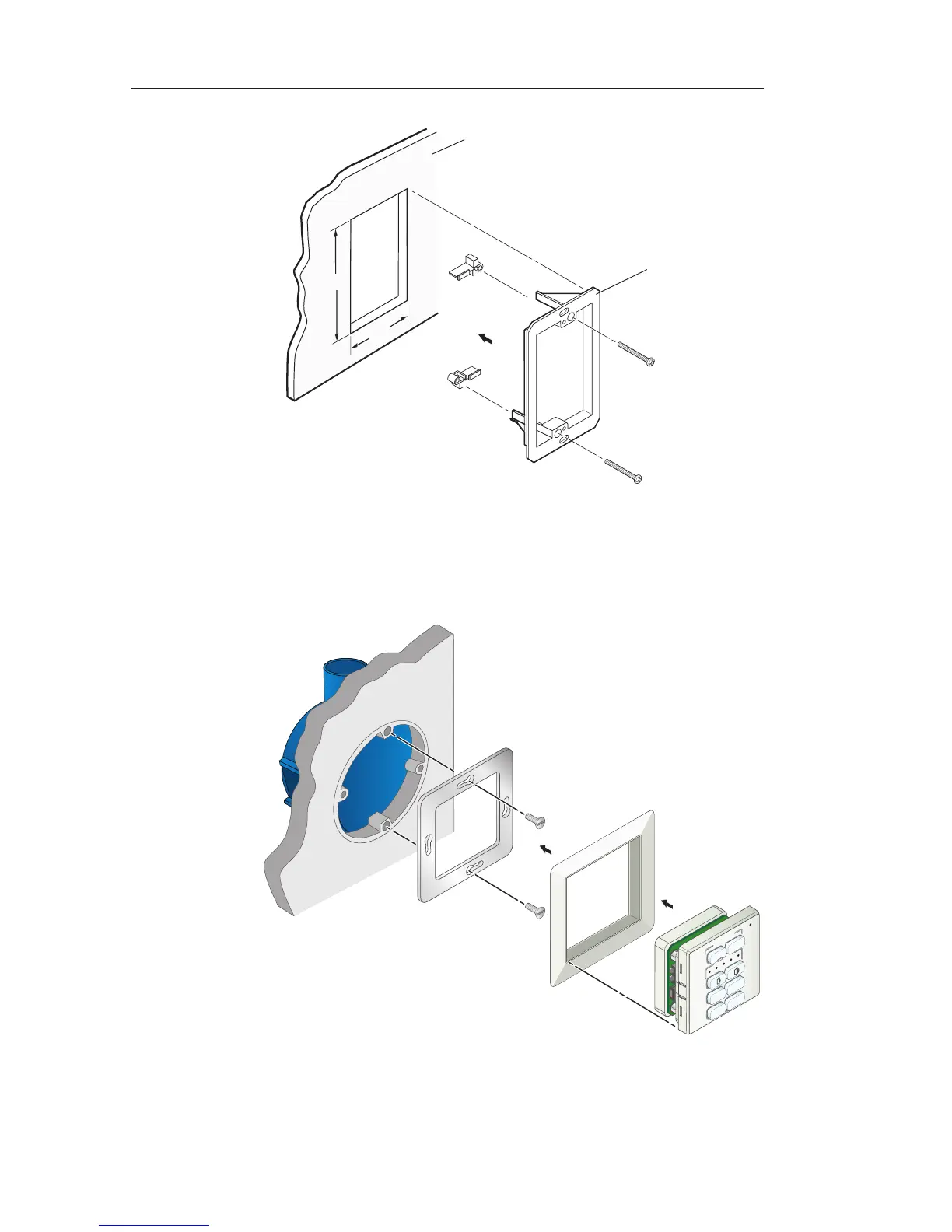

Installing a Decora style mounting bracket
Mounting the MLC 62 EU
The MLC 62 EU can be mounted to a one-gang EU electrical
junction box.
Electrical
Junction Box
Wall Frame
Metal Bracket
MLC 62 RS EU
VOLUME
DISPLAY
MUTE
LAPTOP
OFF
ON
PC
VIDEO
Mounting the MLC 62 EU to an electrical junction
box
