Room Scheduling System • Ad Astra Setup 43
• Event Type — This is listed on the Ad Astra web page. In the Main menu bar, select
Events > Event Types.
From the Master List (see figure 40,
1
), select the required name. This is the Event
Type and should be copied and pasted to ensure it is an exact match.

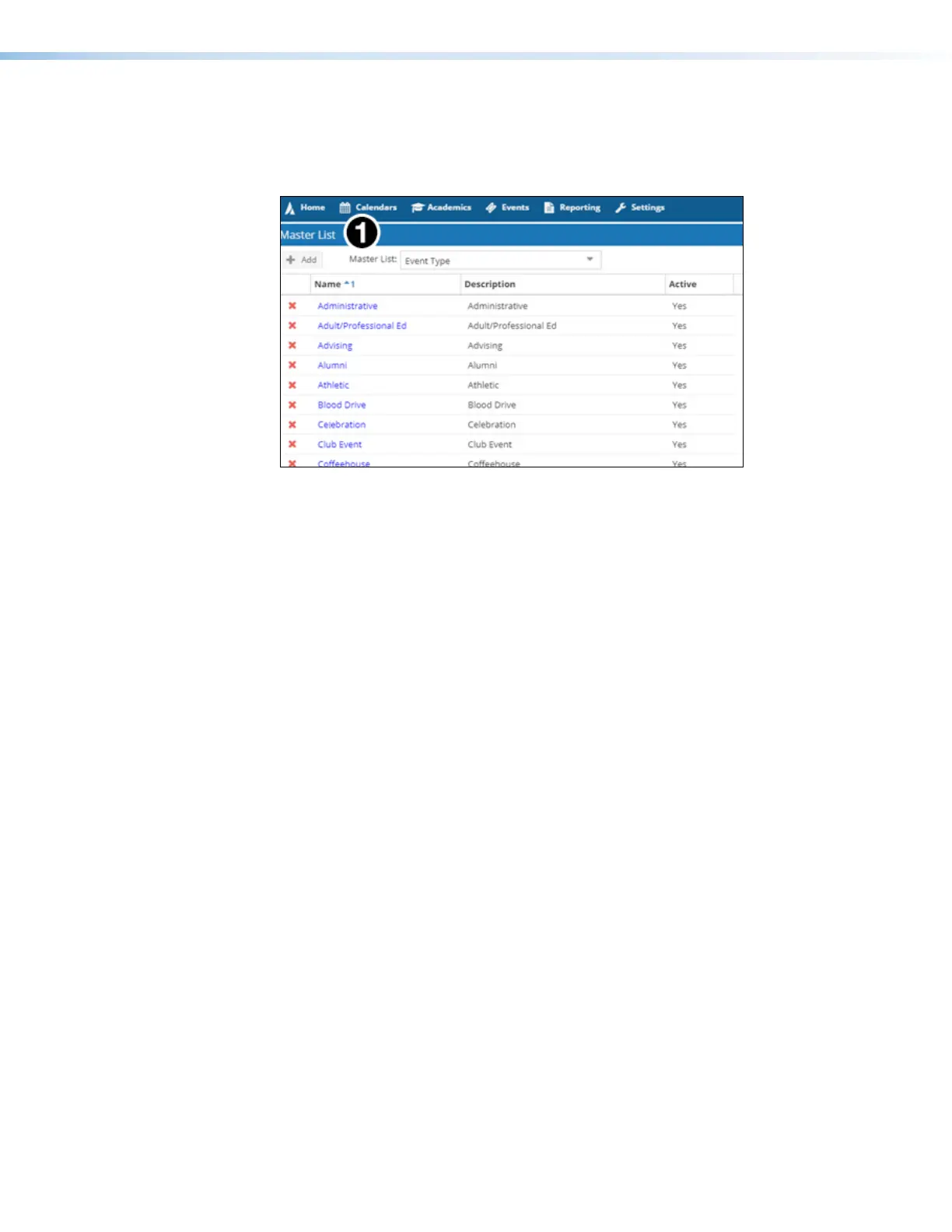

Figure 40. Ad Astra Master List
• Language — Select an option from the Language drop-down list (see Supported
Languages
on page 87). By default, the language is English.
• Button Sound — Select an option from the Button Sound drop-down list. The options
are Off and On. Button sound provides audible feedback when buttons are pressed on
the touchpanel. By default, it is on.
• Panel Design— The layout of the panel can be configured using the Panel Design
tab. You can select one of the saved panel design files from this drop-down list.
After verifying that the information is correct, select one or more panels and click Send
Configuration.
