Fagor MCS Series User Manual

Digital Brushless AC servo drive system - Ref.0707 MCS- 55/92

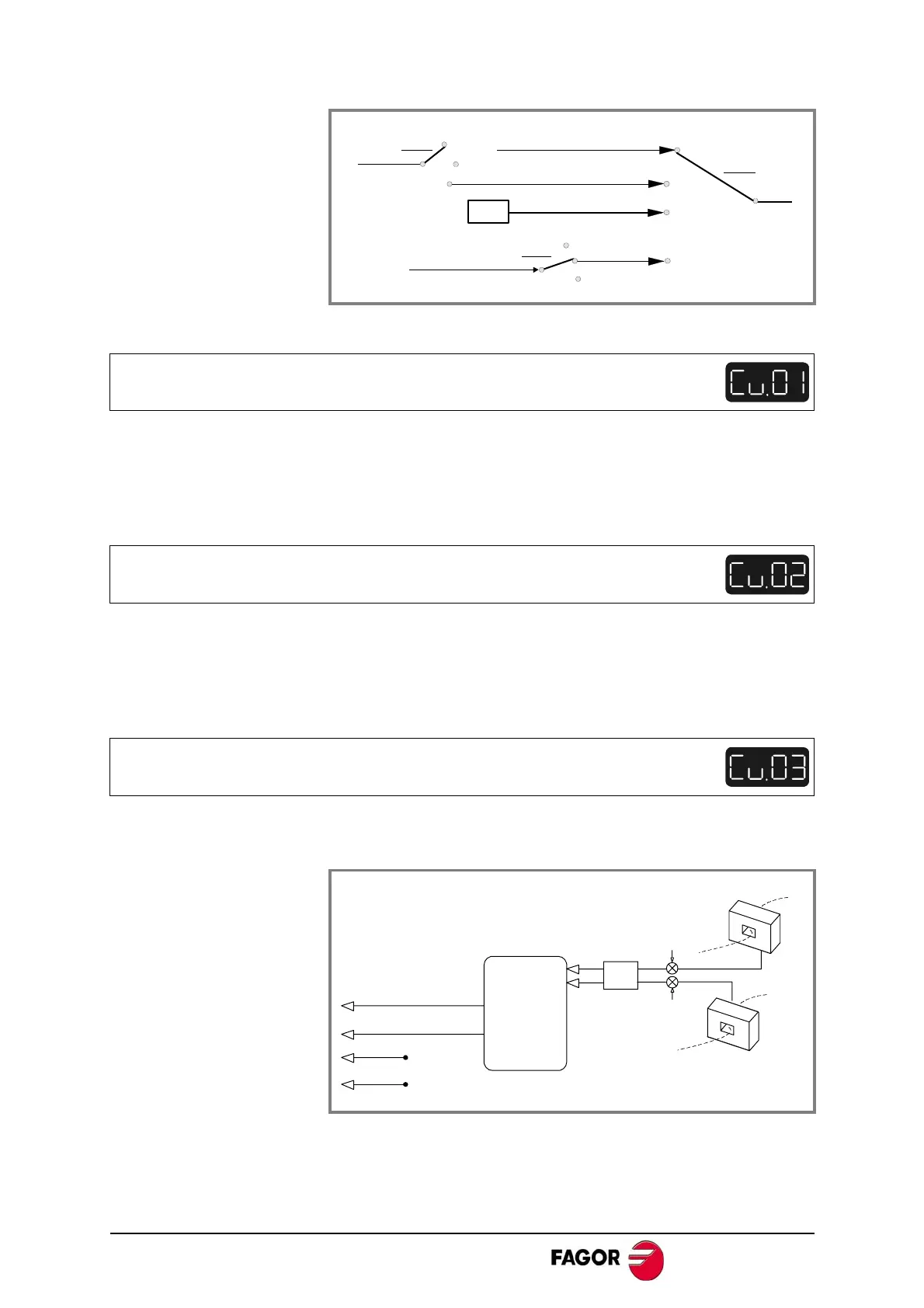

Default value: 0.
Function: Display the value of the feedback of the current going through
phase V.
Valid values: - 50, ..., + 50 A (instant values).
Default value: 0.
Function: Display the value of the feedback of the current going through
phase W.
Valid values: - 50, ..., + 50 A (instant values).
Default value: 0.
Function: Display the rms current circulating through the motor.
Valid values: 0, ..., 50 Arms (rms values).
Default value: 0.
CV1 USER, RO Current1Feedback
CV2 USER, RO Current2Feedback
CV3 USER, RO CurrentFeedback
CP45
From the velocity loop
From the functions generator
Digital Command
IV3
Analog Command
IP17
0
1
2
WV5
CV15
WV4
1
2
3
0
1
2
0
CURRENT
READING
CV1
AD
_sin
CV2
CV10
CV11
IW
I
V
_cos
