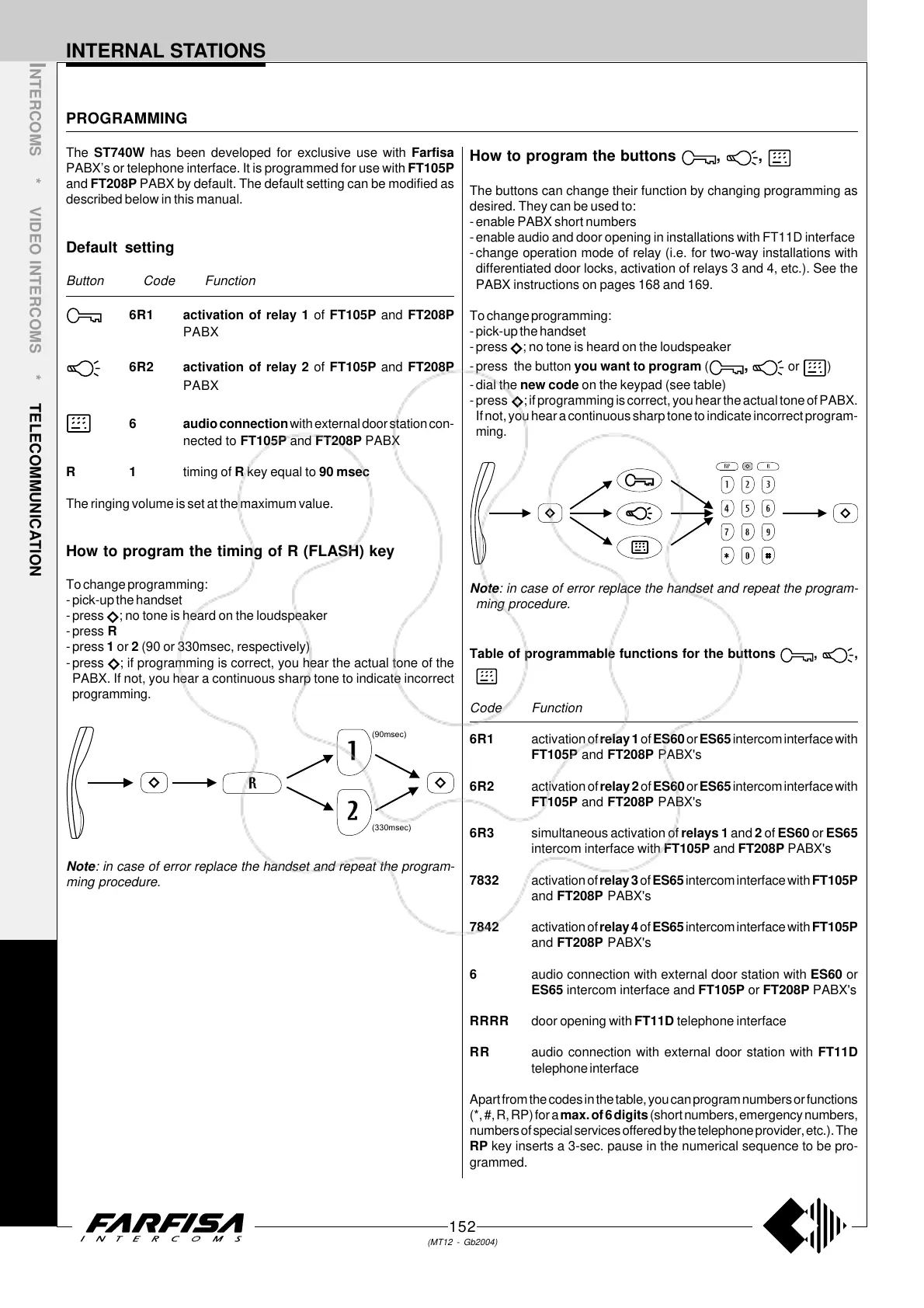

152
(MT12 - Gb2004)
PROGRAMMING
The ST740W has been developed for exclusive use with Farfisa
PABX’s or telephone interface. It is programmed for use with FT105P
and FT208P PABX by default. The default setting can be modified as
described below in this manual.
Default setting
Button Code Function
6R1 activation of relay 1 of FT105P and FT208P
PABX
6R2 activation of relay 2 of FT105P and FT208P
PABX
6 audio connection with external door station con-
nected to FT105P and FT208P PABX
R1timing of R key equal to 90 msec
The ringing volume is set at the maximum value.
How to program the timing of R (FLASH) key
To change programming:
- pick-up the handset
-press ; no tone is heard on the loudspeaker
-press R
-press 1 or 2 (90 or 330msec, respectively)
-press ; if programming is correct, you hear the actual tone of the
PABX. If not, you hear a continuous sharp tone to indicate incorrect
programming.
Note: in case of error replace the handset and repeat the program-
ming procedure.
INTERNAL STATIONS
I
NTERCOMS *
VIDEO INTERCOMS *
TELECOMMUNICATION
S
T
U
D
I
O
How to program the buttons , ,
The buttons can change their function by changing programming as
desired. They can be used to:
-enable PABX short numbers
-enable audio and door opening in installations with FT11D interface
-change operation mode of relay (i.e. for two-way installations with
differentiated door locks, activation of relays 3 and 4, etc.). See the
PABX instructions on pages 168 and 169.
To change programming:
- pick-up the handset
-press ; no tone is heard on the loudspeaker
-press the button you want to program (
, or )
-dial the new code on the keypad (see table)
- press
; if programming is correct, you hear the actual tone of PABX.
If not, you hear a continuous sharp tone to indicate incorrect program-
ming.
Note: in case of error replace the handset and repeat the program-
ming procedure.
Table of programmable functions for the buttons
, ,
Code Function
6R1 activation of relay 1 of ES60 or ES65 intercom interface with
FT105P and FT208P PABX's
6R2 activation of relay 2 of ES60 or ES65 intercom interface with
FT105P and FT208P PABX's
6R3 simultaneous activation of relays 1 and 2 of ES60 or ES65
intercom interface with FT105P and FT208P PABX's
7832 activation of relay 3 of ES65 intercom interface with FT105P
and FT208P PABX's
7842 activation of relay 4 of ES65 intercom interface with FT105P
and FT208P PABX's
6 audio connection with external door station with ES60 or
ES65 intercom interface and FT105P or FT208P PABX's
RRRR door opening with FT11D telephone interface
RR audio connection with external door station with FT11D
telephone interface
Apart from the codes in the table, you can program numbers or functions
(*, #, R, RP) for a max. of 6 digits (short numbers, emergency numbers,
numbers of special services offered by the telephone provider, etc.). The
RP key inserts a 3-sec. pause in the numerical sequence to be pro-
grammed.
(90msec)
(330msec)
