Under Interface Type select Serial
Under Manufacturer select Siemens Corporation
Under Product Series select S7-200 SMART PPI
Under Port select the port number that corresponds to the RS485 connection on the
HMI.

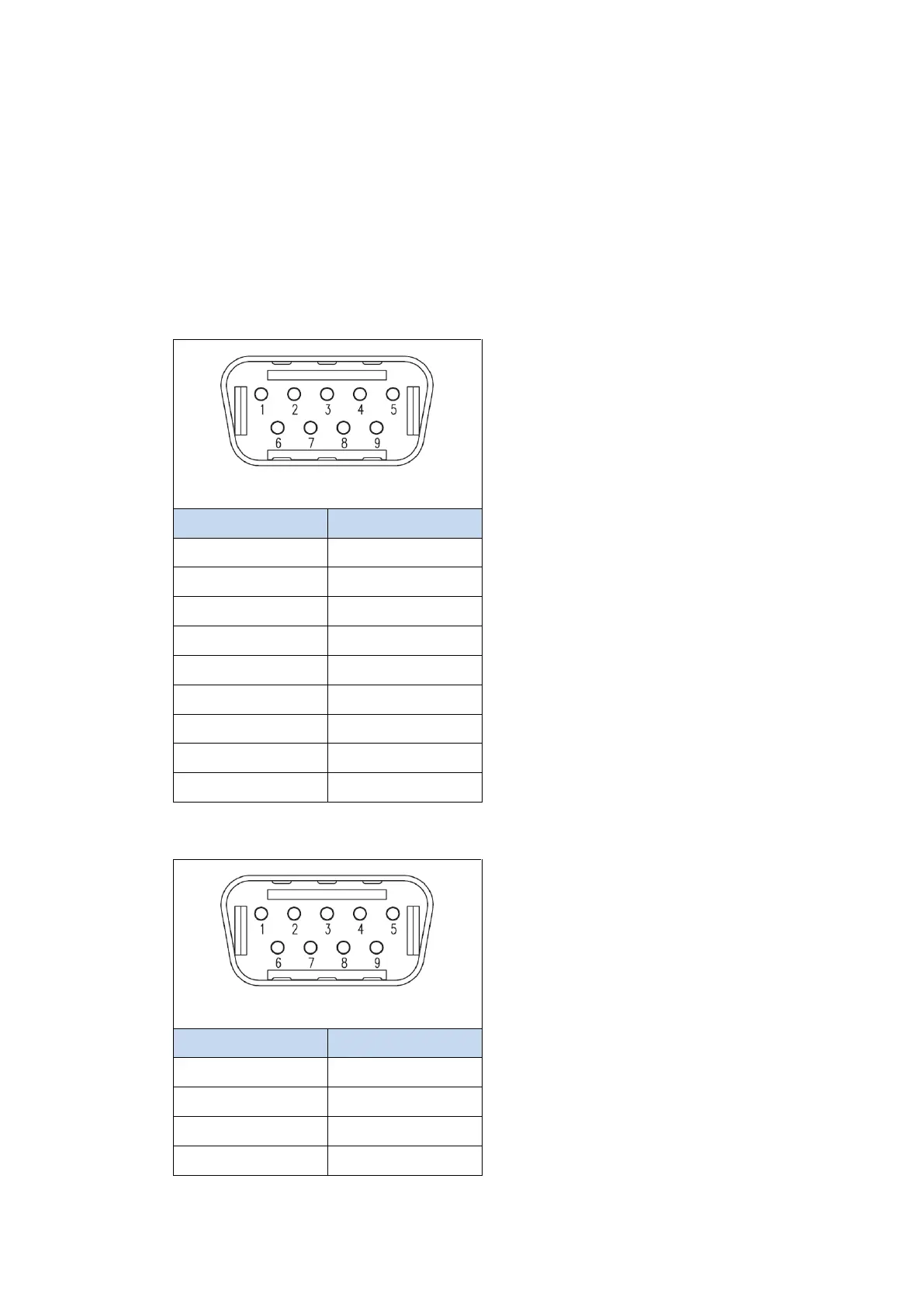

2.4.1.4 Wiring Diagrams
PLC RS485 Port
*Looking into male RS485 Cable
PIN#
Signal
1
2
3
DATA+
4
5
GND
6
7
8
DATA-
9
HMI (ex.P5043N) COM2 Pinout
*Looking into HMI
PIN#
COM2 (RS485)
1
DATA+
2
3
4
