FATEK P5070S - FX3 U Ethernet

48
P5043S/P5043N/P5070VS/P5102VS
HMI COM2
PLC RS422 Port
9 RX-
SDB
4 RX+
SDA
6 TX-
RDB
1 TX+
RDA
5 GND
SG

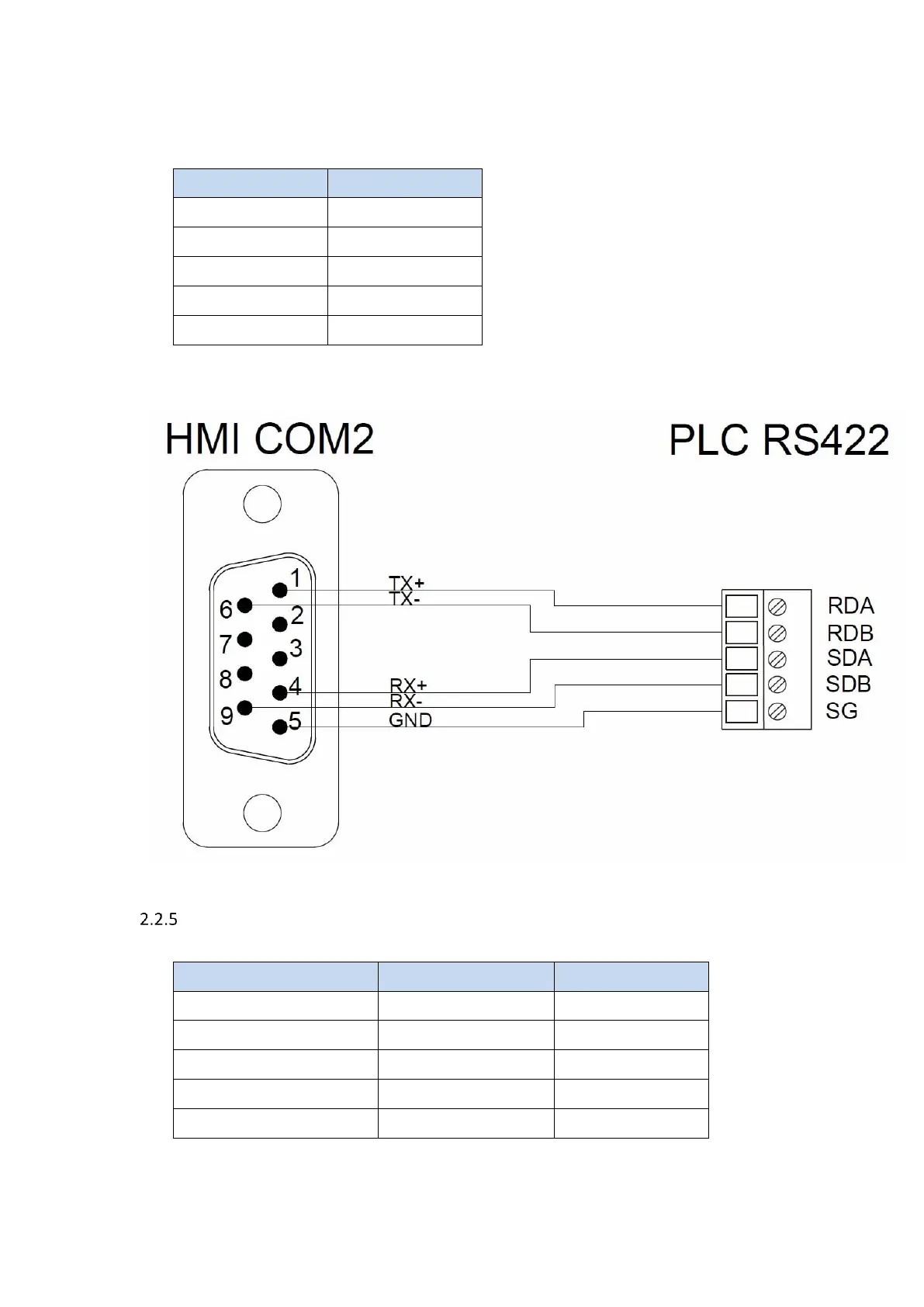

Wiring Diagrams:P5043S/P5043N/P5070VS/P5102VS
FX3U Ethernet
2.2.5.1 Communication Setting
Item
Default Setting
Remark
Signal Level
Ethernet
Internet Protocol
0.0.0.0
Port
5001
PLC Station No.
0
Communication Method
MC protocol
Binary/ASCII
2.2.5.2 Memory Resource Review
