FATEK P5070S - Siemens PLC Connections; Siemens S7-200 SMART Series

107

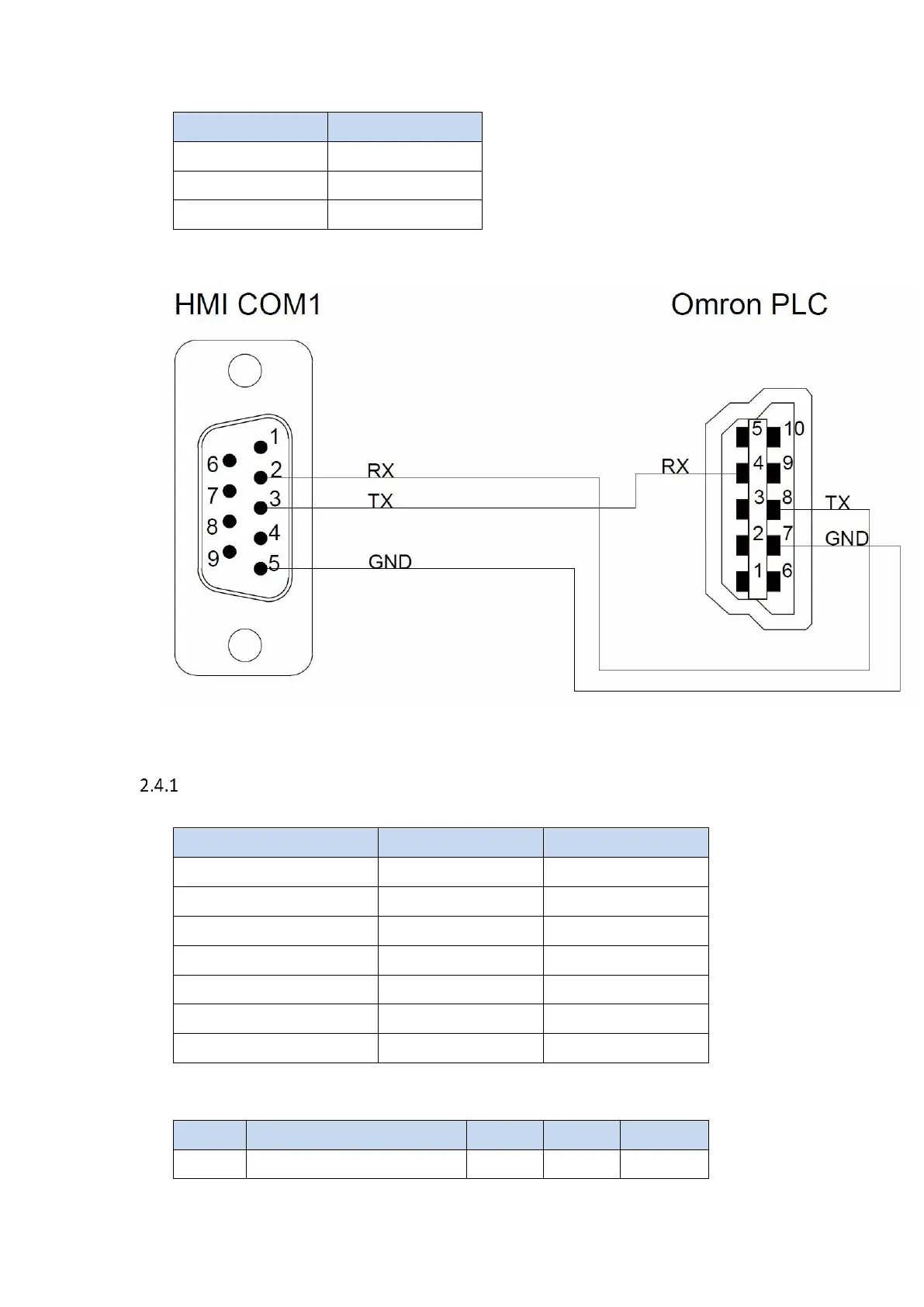

HMI COM1
Omron PLC Port
2 RX
8 TX
3 TX
4 RX
5 GND
7 GND
Wiring Diagrams:All P5Series
2.4 Siemens
Siemens S7-200 SMART
2.4.1.1 Communication Setting
Item
Default Setting
Remark
Signal Level
RS485 2W
Baud Rate
9600
Data Length
8
Stop Bit
1
Parity
Even
PLC Station No.
2
Communication Method
PPI
2.4.1.2 Memory Resource Review
Device
Description
Data bit
Min.
Max.
I
Input
1
0
31
