FATEK P5070S - Siemens S7-200 SMART Ethernet

113

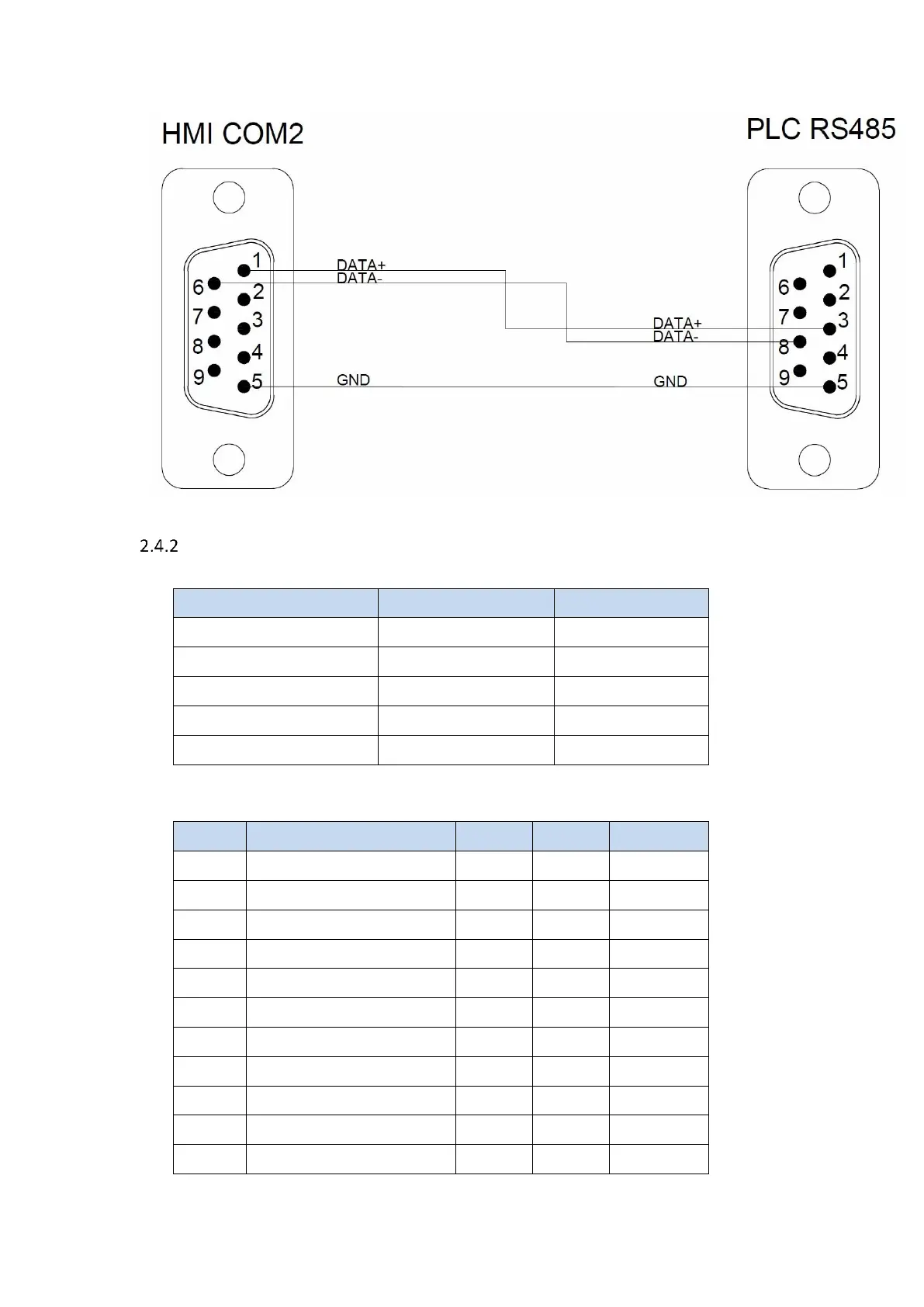

Siemens S7-200 SMART Ethernet
2.4.2.1 Communication Setting
Item
Default Setting
Remark
Signal Level
Ethernet
Internet Protocol
0.0.0.0
To be configured
Port
102
PLC Station No.
0
Communication Method
ISO TCP
2.4.2.2 Memory Resource Review
Device
Description
Data bit
Min.
Max.
I
Input
1
0
31.7
Q
Output
1
0
31.7
M
Bit Memory
1
0
31.7
V
Variable Memory
1
0
20479.7
C
Counter
1
0
255
T
Timer
1
0
255
S
Sequential Control Relays
1
0
31.7
SM
Special Memory Bit
1
0
1535.7
IW
Input
16
0
31
QW
Output
16
0
31
TW
Timer
16
0
255
