FATEK P5070S - YASKAWA MP Series Extension (Ethernet)

193

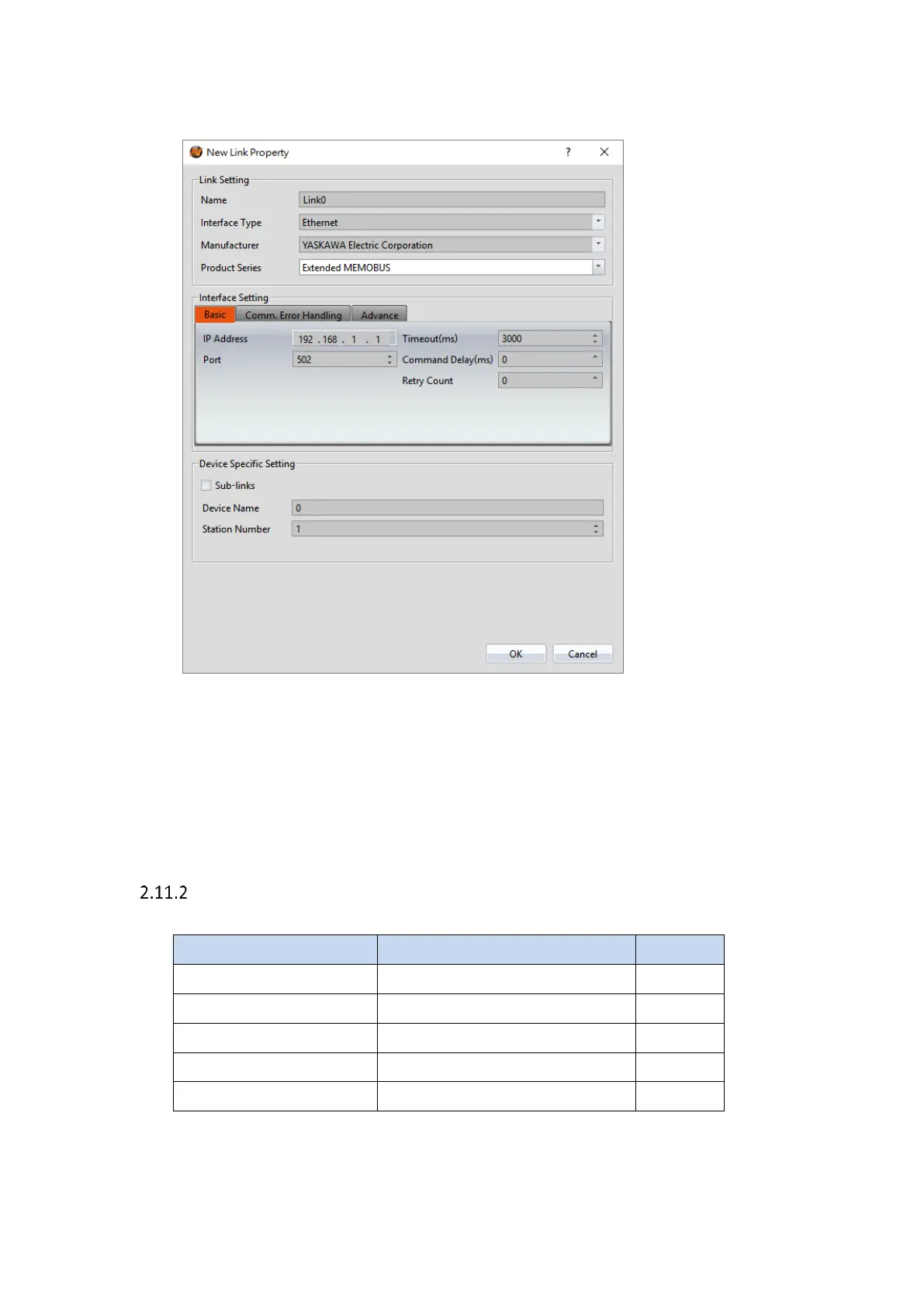

Within the Link configuration window in FvDesigner:
Under Interface Type select Ethernet
Under Manufacturer select YASKAWA Electric Corporation.
Under Product Series select Extended MEMOBUS.
Enter the IP Address that was written into the PLC.
Verify the parameters match the window above.
MP Series Extension (Ethernet)
2.11.2.1 Communication Setting
Item
Default Setting
Remark
Signal Level
Ethernet
UDP
Internet Protocol
192.168.1.1
Port
10000
PLC Station No.
1
Communication Method
MP Series Extension (Ethernet)
2.11.2.2 Memory Resource Review
