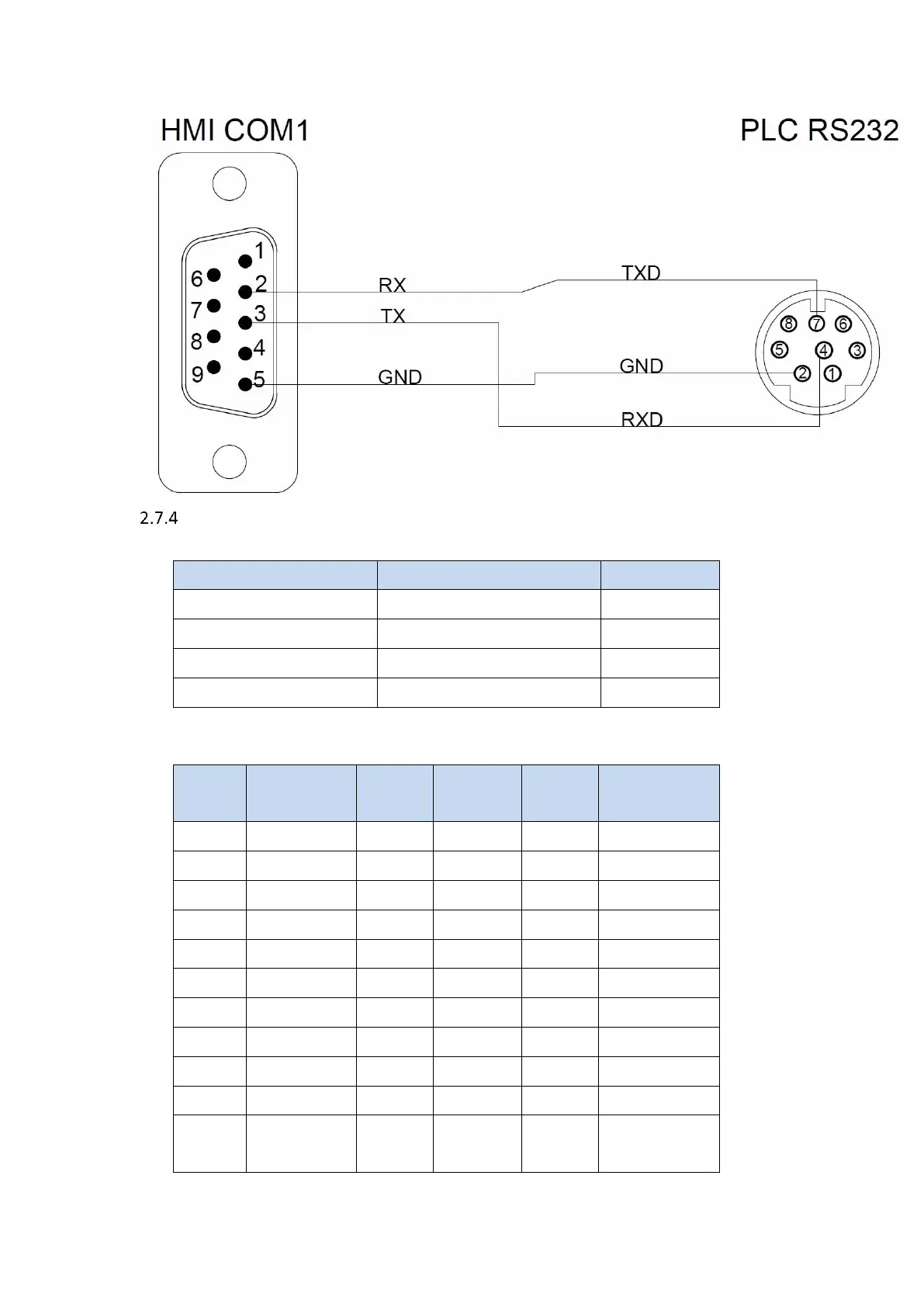

MicroLogix Series (EtherNet/IP)
2.7.4.1 Communication Setting
Item
Default Setting
Remark
Signal Level
Ethernet
Internet Protocol
192.168.0.1
Port
44818
Communication Method
EtherNet/IP
2.7.4.2 PLC Resource Review
Device
Description
Data bit
Input
format
Min.
Max.
O
Output File
1/16
O F:S.D
O0:0.0
O0:30.255
I
Intput File
1/16
I F:S.D
I1:0.0
I1:30.255
S
Status File
1/16
S F:E
S2:0
S2:163
B
Bit File
1/16
B F:E
B3:0
B255:255
T
Timer File
1/16
T F:E.D
T4:0.0
T255:255.2
C
Counter File
1/16
C F:E.D
C5:0.0
C255:255.2
R
Control File
1/16
R F:E.D
R6:0.0
R255:255.2
N
Integer File
1/16
N F:E
N7:0
N255:255
F
Floating File
32
F F:E
F8:0
F255:255
ST
String File
1/16
ST F:E.D
ST9:0.0
ST255:255.41
L
Long word
File
32
L F:E
L9:0
L255:255
