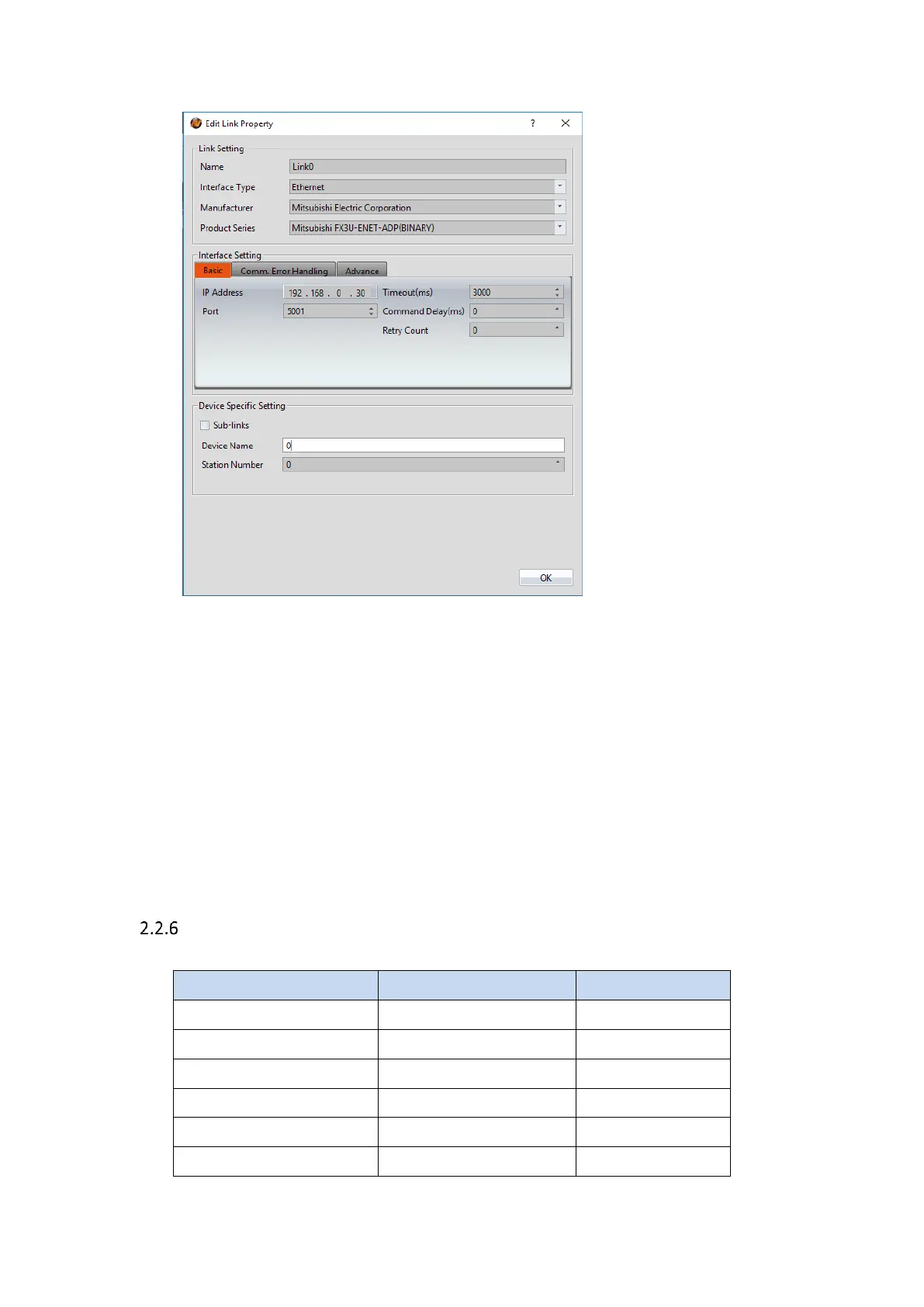

Within the Link configuration window in FvDesigner:
Under Interface Type select Ethernet
Under Manufacturer select Mitsubishi Electric Corporation
Under Product Series select one of the Mitsubishi FX3U-ENET-ADP options. The last
part of the series name (BINARY or ASCII) should be consistent with the Connection
Data Code set in the Ethernet Port for the PLC.
Enter the IP Address that was written into the PLC.
Enter 5001 for the Port.
FX5U-Serial
2.2.6.1 Communication Setting
Item
Default Setting
Remark
Signal Level
RS485
Baud Rate
19200
Data Length
8
Stop Bit
1
Parity
None
PLC Station No.
0
