FATEK P5070S - Panasonic FP Series Ethernet

188
5 GND
1 GND

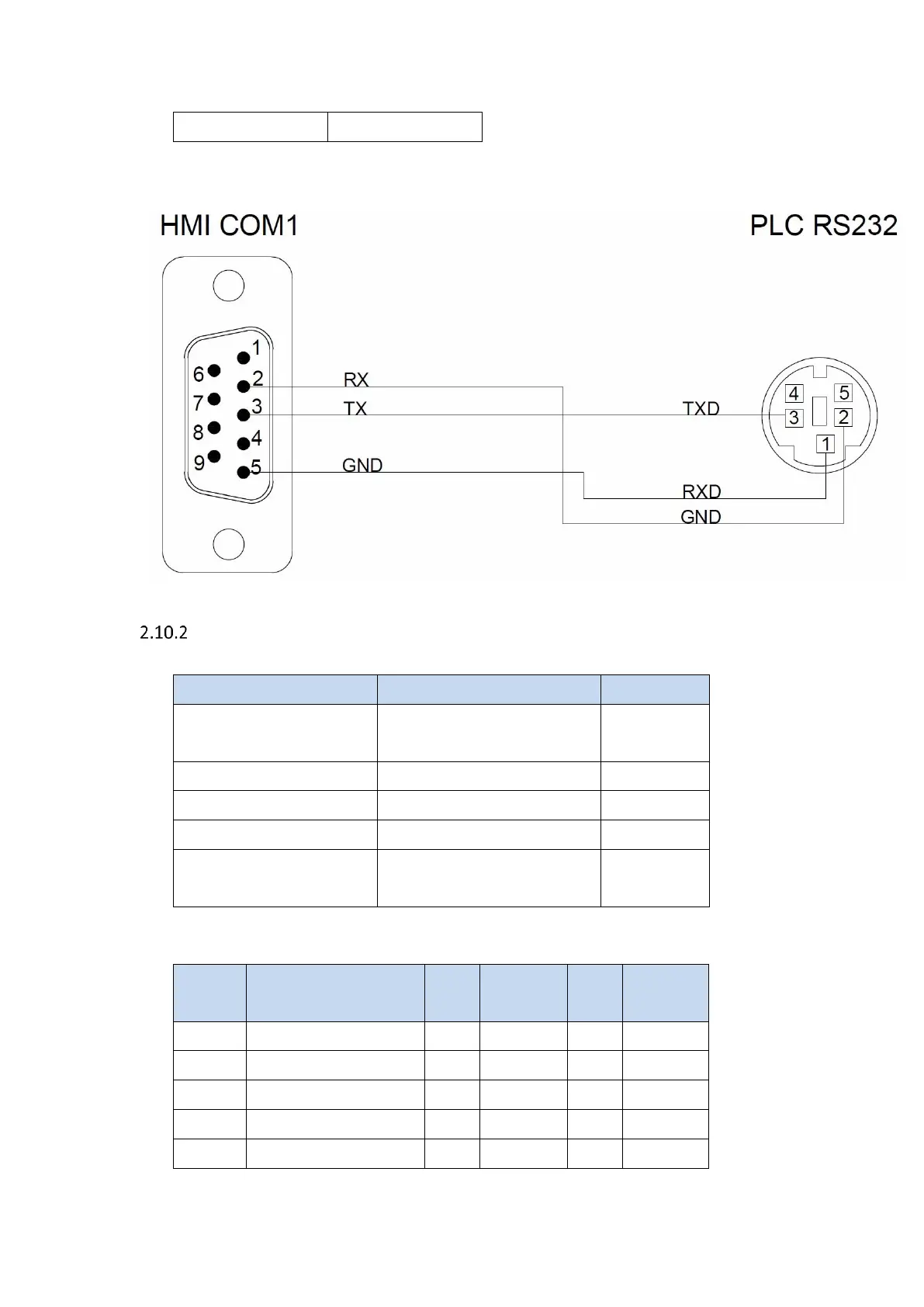

Wiring Diagrams:All P5Series
FP Series (Ethernet)
2.10.2.1 Communication Setting
Item
Default Setting
Remark
Signal Level
Ethernet
With
AFPX-COM5
Internet Protocol
192.168.1.100
Port
9094
PLC Station No.
1
Communication Method
MEWTOCOL (computer
link)
2.10.2.2 Memory Resource Review
Device
Description
Data
bit
Input
format
Min.
Max.
X
External input relay
1
DDDD
0
8191
Y
External output relay
1
DDDD
0
8191
R
Internal relay
1
DDDDD
0
14191
L
Link Relay
1
DDDDD
0
10239
T
Timer
1
DDDD
0
3071
