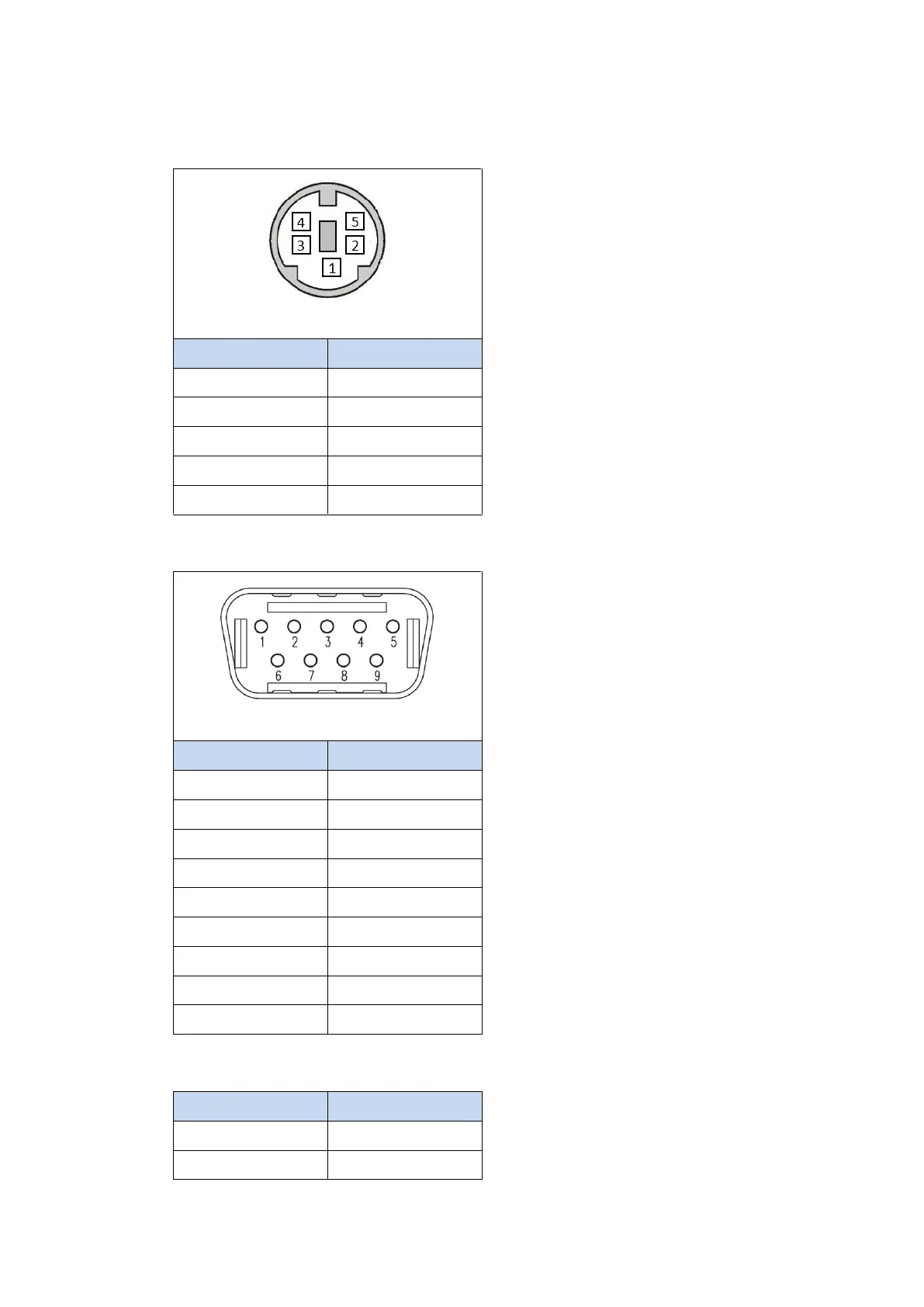

2.10.1.4 Wiring Diagrams
PLC RS232 Pinout
*View looking into PLC
PIN#
Signal
1
GND
2
TXD
3
RXD
4
5
HMI COM1 Pinout
*Looking into COM1 Port
PIN#
COM1 (RS232)
1
2
RX
3
TX
4
5
GND
6
7
RTS
8
CTS
9
All P5 Series
HMI COM1
PLC RS232 Port
2 RX
2 TXD
3 TX
3 RXD
