FATEK P5070S - Omron SYSMAC CP Series Ethernet

91

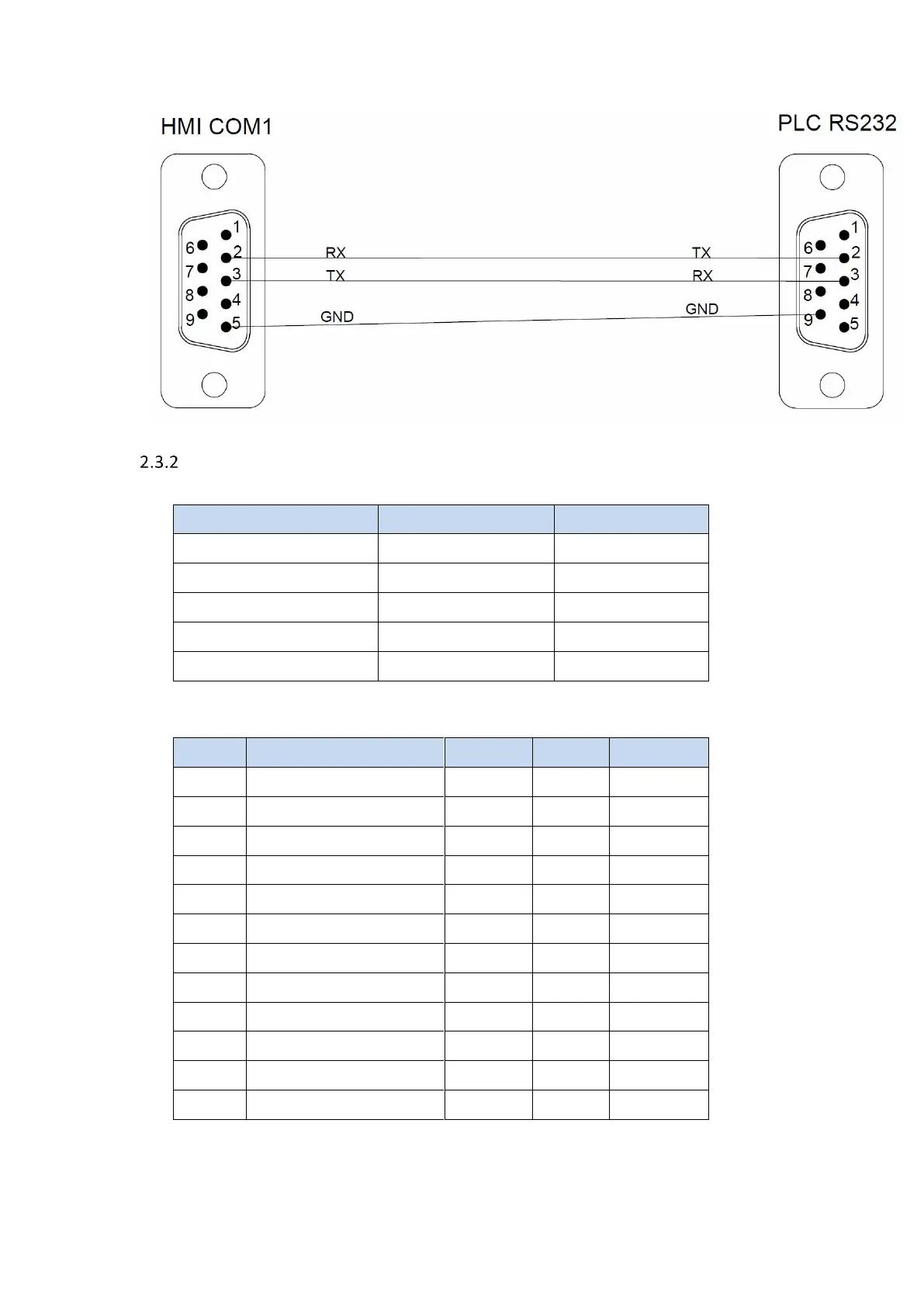

Omron SYSMAC CP Series Ethernet
2.3.2.1 Communication Setting
Item
Default Setting
Remark
Signal Level
Ethernet
Internet Protocol
0.0.0.0
To be configured
Port
9600
PLC Station No.
0
Communication Method
FINS/TCP
2.3.2.2 Memory Resource Review
Device
Description
Data bit
Min.
Max.
TK
Task Flag
1
0
31
TIM
Timer Area
1
0
4095
CNT
Counter Area
1
0
4095
CIO
CIO Area
16
0
6143
W
Work Area
16
0
511
H
Holding Area
16
0
511
A
Auxiliary Area
16
0
959
T
Timer Area
16
0
4095
C
Counter Area
16
0
4095
D
Data Memory Area
16
0
32767
IR
Index Register
32
0
15
DR
Data Register
16
0
15
