FATEK P5070S - Beckhoff Automation; Twincat(Ethernet)

214

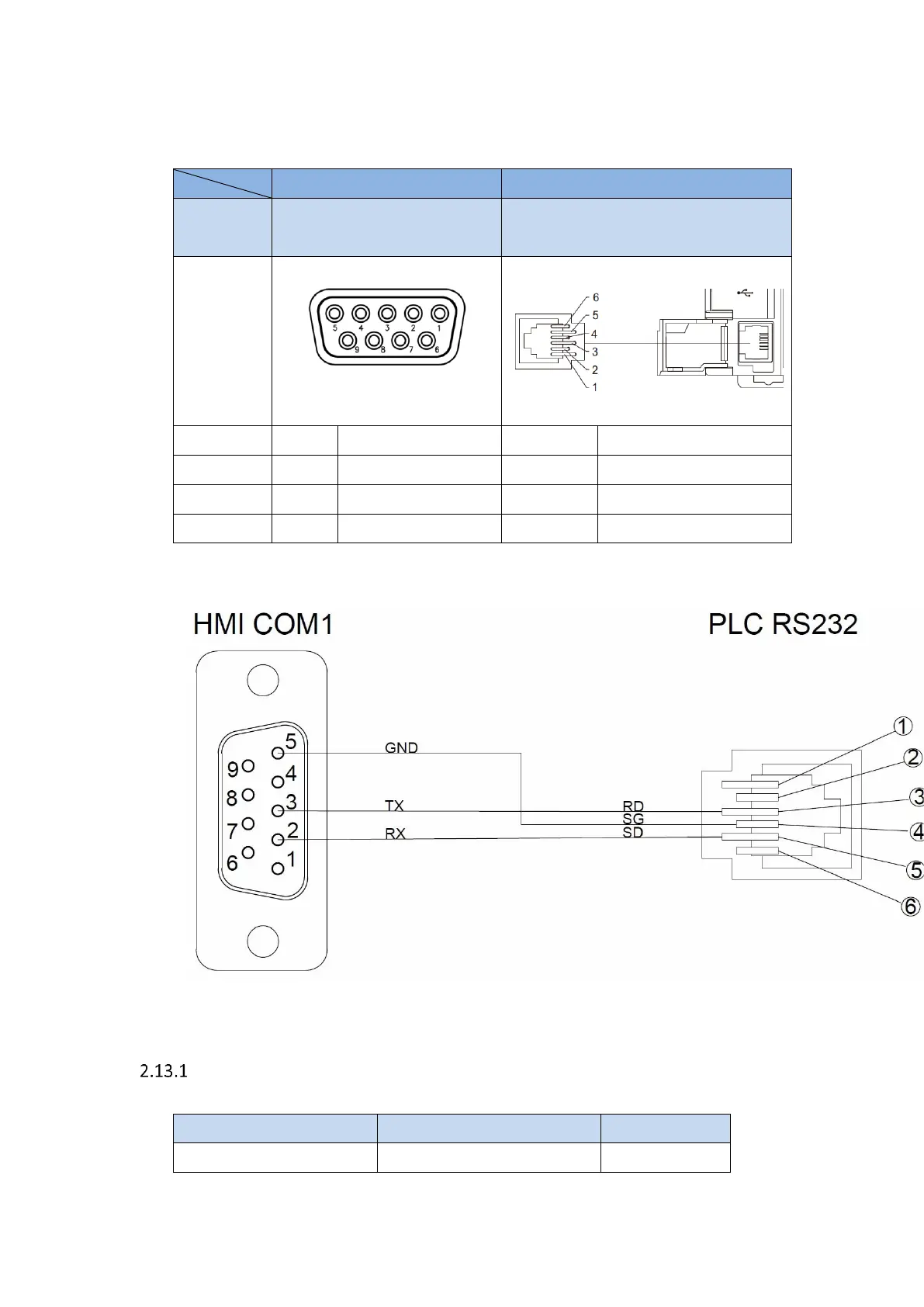

2.12.3.4 Wiring Diagrams
Port 1: RS232
HMI
PLC
Serial
Interface
COM1 RS-232
9 pin D-SUB Female
RS232
6 pin
Looking into PLC
PIN#
Signal
PIN#
Signal
2
RX
5
SD
3
TX
3
RD
5
GND
4
SG
Wiring Diagrams:Port 1: RS232
2.13 Beckhoff Automation
Twincat(Ethernet)
2.13.1.1 Communication Setting
Item
Default Setting
Remark
Signal Level
Ethernet
