FATEK P5070S - Qseries-Serial Communication(CPU Port)

77
3 GND
SG

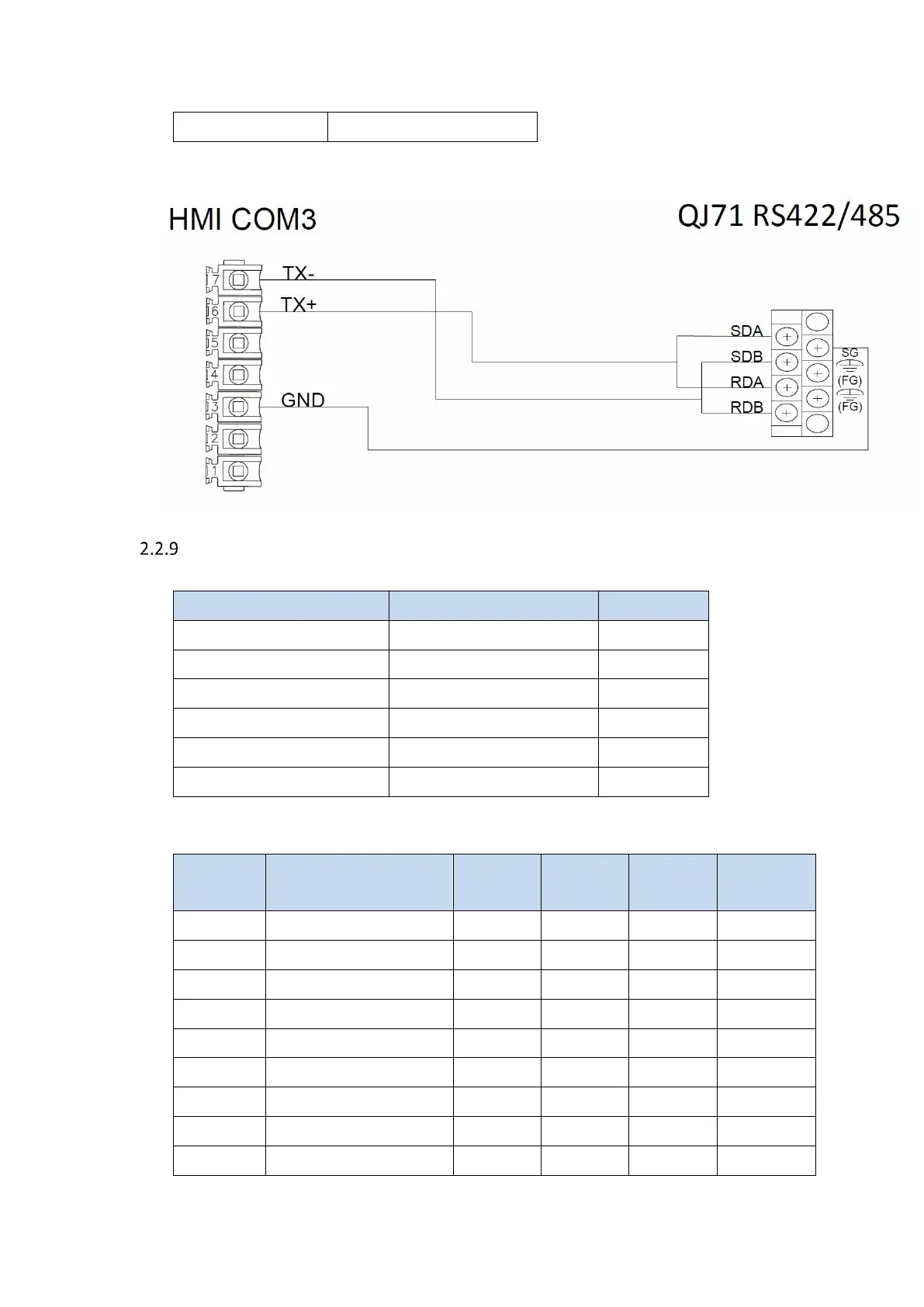

Wiring Diagrams:RS485
QSeries-Serial Communication(CPU Port)
2.2.9.1 Communication Setting
Item
Default Setting
Remark
Signal Level
RS232
Baud Rate
19200
Data Length
8
Stop Bit
1
Parity
Odd
PLC Station No.
0
2.2.9.2 Memory Resource Review
Device
Description
Data bit
Input
format
Min.
Max.
X
Input Relay
1
HHHH
0
1fff
Y
Output Relay
1
HHHH
0
1fff
M
Internal Relay
1
DDDDD
0
61439
L
Latch Relay
1
DDDDD
0
32767
B
Link Relay
1
HHHH
0
Efff
F
Annunciator
1
DDDDD
0
32767
V
Edge Relay
1
DDDDD
0
32767
SB
Link Special Relay
1
HHHH
0
7fff
S
Step Relay
1
DDDDD
0
16383
