FATEK P5070S - Siemens LOGO

129
Siemens LOGO

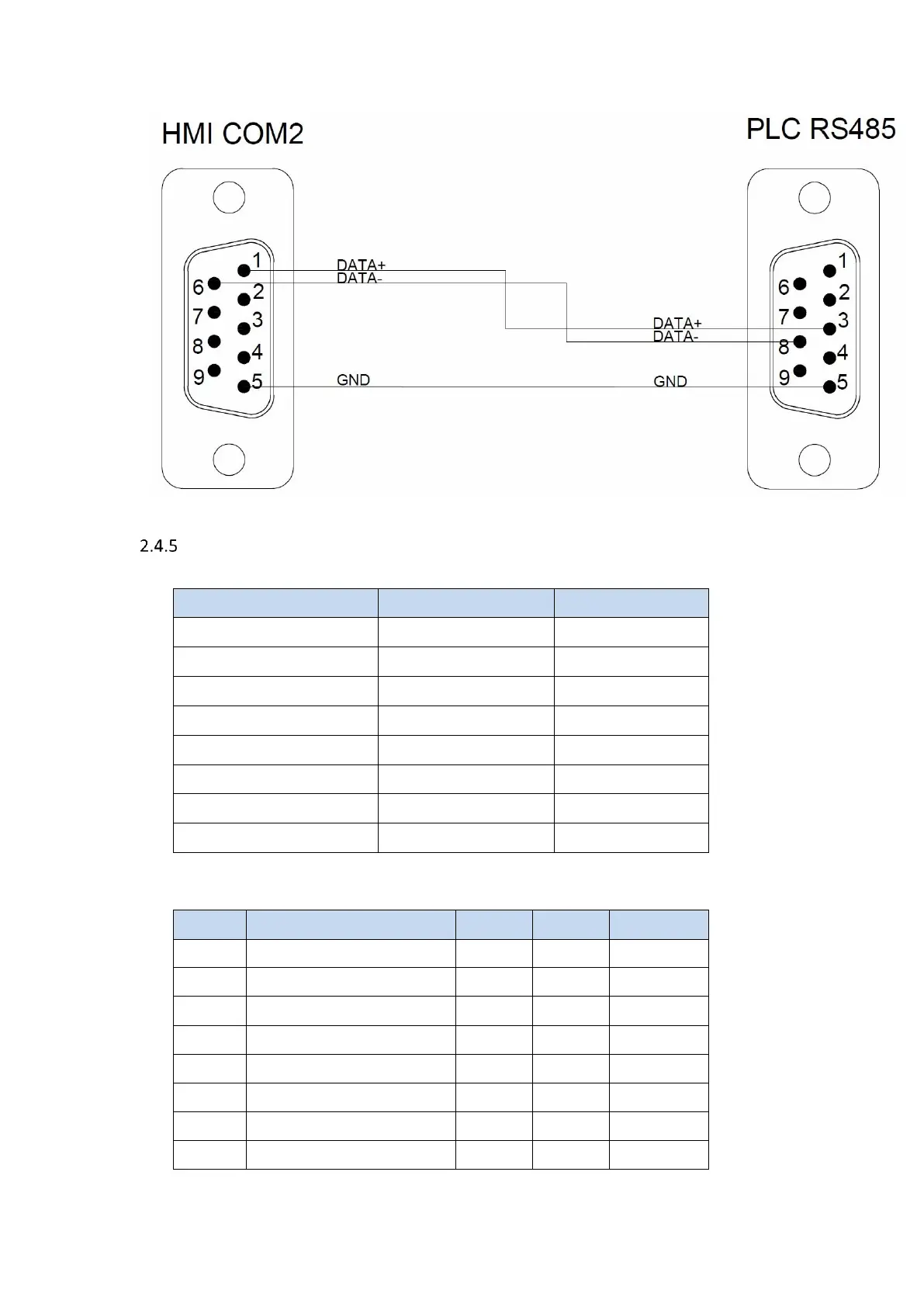

2.4.5.1 Communication Setting
Item
Default Setting
Remark
Signal Level
Ethernet
Internet Protocol
0.0.0.0
To be configured
Port
102
PLC Station No.
0
Communication Method
ISO TCP
Model
0BA8
0BA7/0BA8
Local TSAP
1000
HEX
Remote TSAP
2100
HEX
2.4.5.2 Memory Resource Review
Device
Description
Data bit
Min.
Max.
I
Input
1
1
64
Q
Output
1
1
64
M
Bit Memory
1
1
112
V
Variable Memory
1
0.0
1469.7
AI
Analog Input
16
1
16
AQ
Analog Ouput
16
1
16
AM
Analog Memory
16
1
64
VW
16
0
1468
