FATEK P5070S - Mitsubishi FX3 U Series

37
FX3U CPU

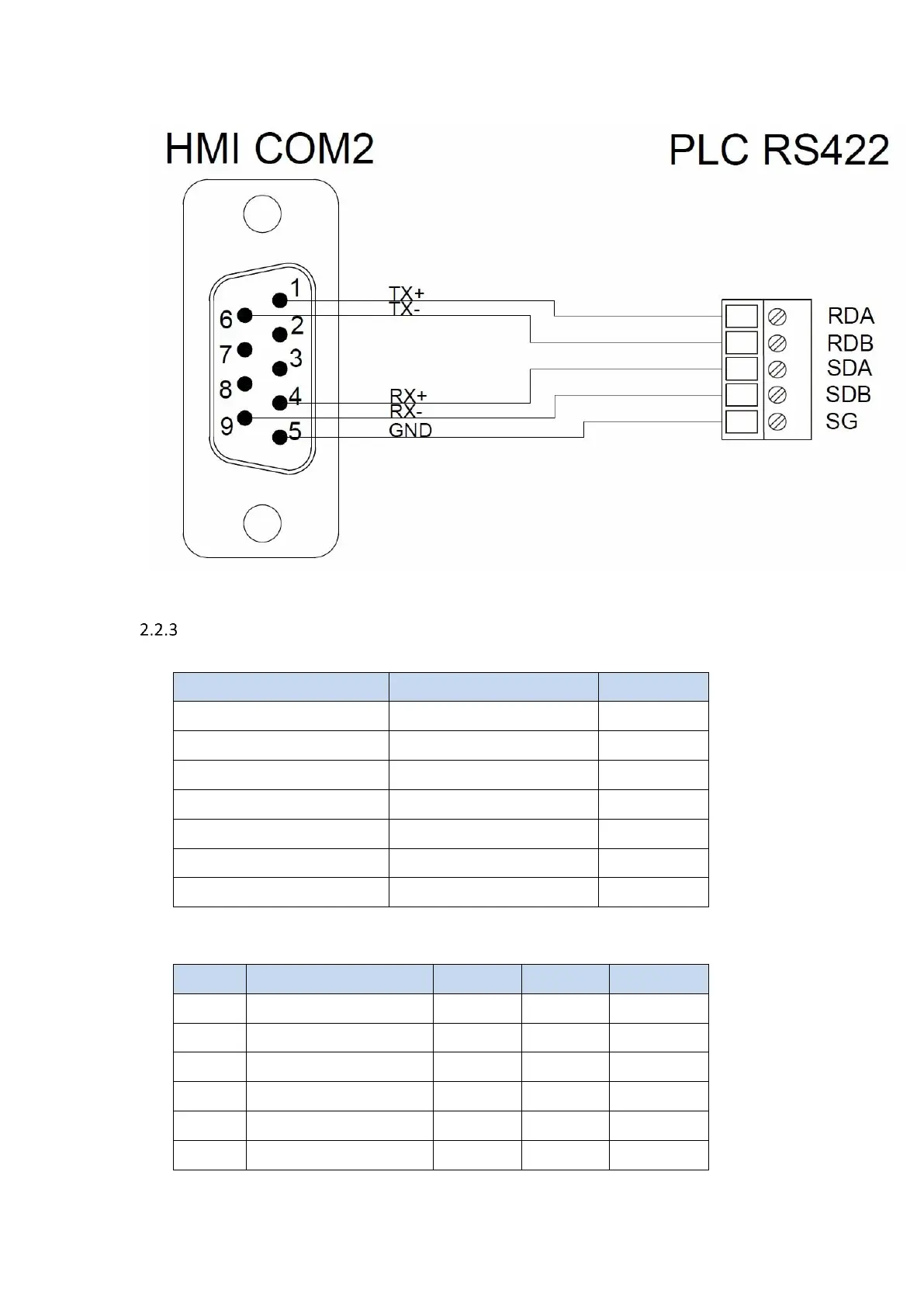

2.2.3.1 Communication Setting
Item
Default Setting
Remark
Signal Level
RS485 4W
Baud Rate
9600
Data Length
7
Stop Bit
1
Parity
Even
PLC Station No.
0
Communication Method
Programming Protocol
2.2.3.2 Memory Resource Review
Device
Description
Data bit
Min.
Max.
X
Input Discrete
1
0
377
Y
Output Relay
1
0
377
M
Internal Relay
1
0
7999
SM
Special Relay
1
8000
8511
S
Step Relay
1
0
4095
TS
Timer Discrete
1
0
511
