FATEK P5070S - Q;L Series-ENET

82
Q/L Series-ENET

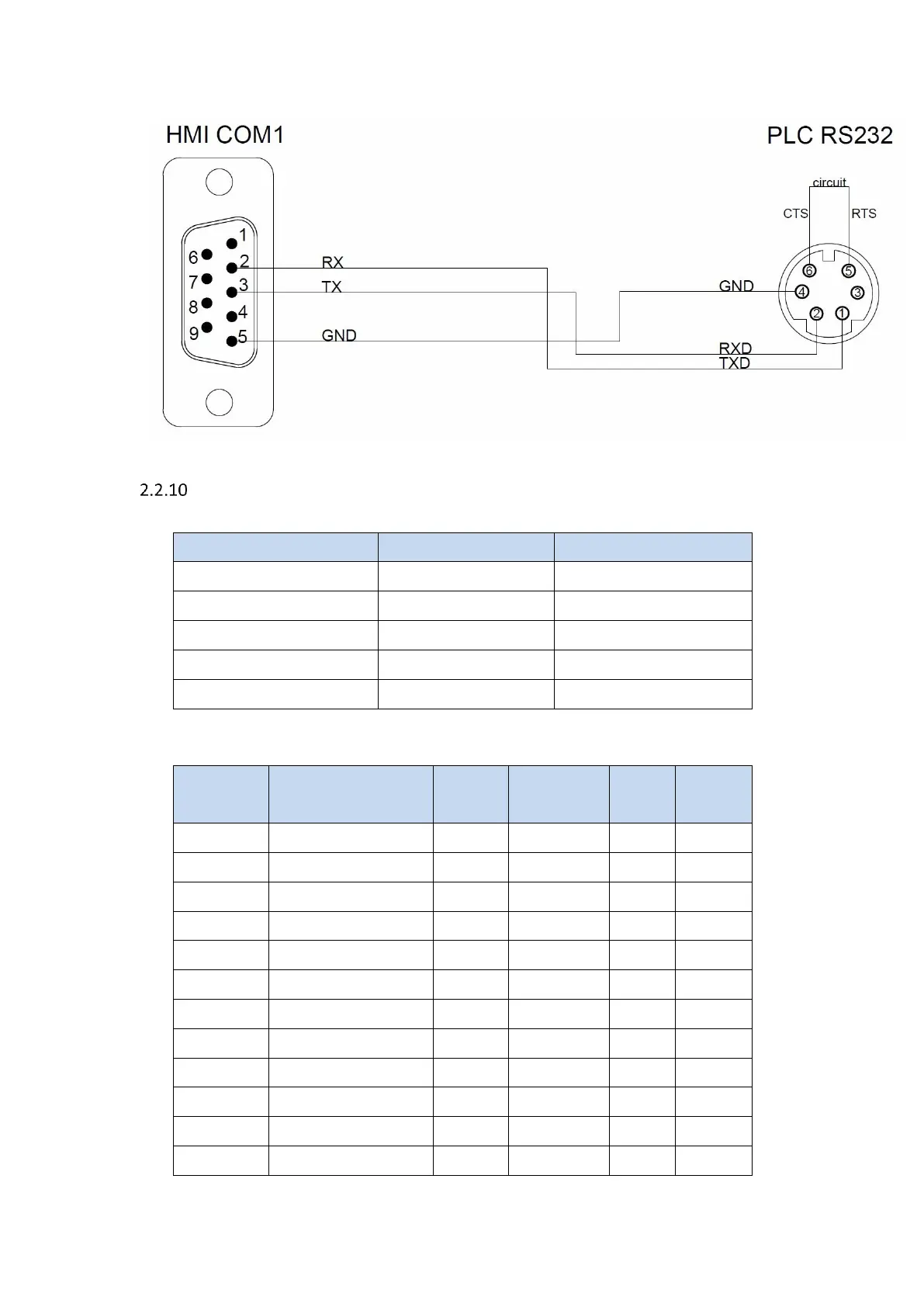

2.2.10.1 Communication Setting
Item
Default Setting
Remark
Signal Level
Ethernet
Internet Protocol
0.0.0.0
Port
4999
PLC Station No.
0
Communication Method
MC protocol 3E
Binary/ASCII
2.2.10.2 Memory Resource Review
Device
Description
Data
bit
Input
Format
Min.
Max.
X
Input Relay
1
HHHH
0
1fff
Y
Output Relay
1
HHHH
0
1fff
M
Internal Relay
1
DDDDD
0
61439
L
Latch Relay
1
DDDD
0
32767
B
Link Relay
1
HHHH
0
efff
F
Annunciator
1
DDDD
0
32767
V
Edge Relay
1
DDDD
0
32767
SB
Link Special Relay
1
HHH
0
7FFF
S
Step Relay
1
DDDD
0
16383
TS
Timer Contact
1
DDDD
0
32767
TC
Timer Coil
1
DDDD
0
32767
SS
Retentive Timer
1
DDDD
0
32767
