FATEK P5070S - AH500 Series

177
AH500 Series

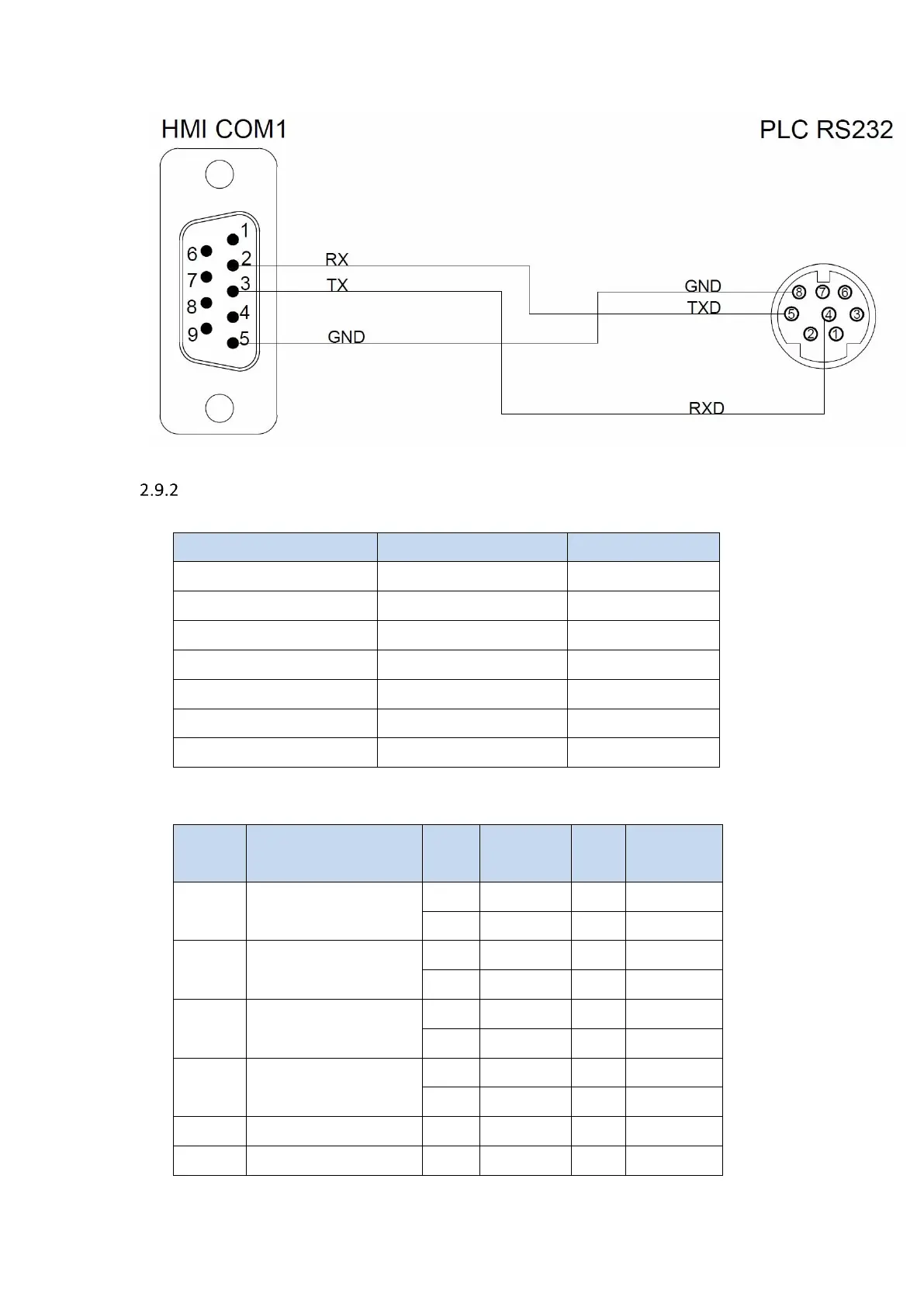

2.9.2.1 Communication Setting
Item
Default Setting
Remark
Signal Level
RS232C
Baud Rate
9600
Data Length
7
Stop Bit
1
Parity
Even
PLC Station No.
1
Communication Method
MODBUS ASCII
2.9.2.2 Memory Resource Review
Device
Description
Data
bit
Input
format
Min.
Max.
X
Input relay
1
DDD.D
0.0
511.15
16
DDD
0
511
Y
Output relay
1
DDD.D
0.0
511.15
16
DDD
0
511
D
Data register
1
DDDDD.D
0
65535.15
16
DDDDD
0
65535
L
Link register
1
DDDDD.D
0
65535.15
16
DDDDD
0
65535
M
Auxiliary relay
1
DDDD
0
8191
SM
Special Auxiliary
1
DDDD
0
2047
