FATEK P5070S - Page 176

176
5
GND
6
7
RTS
8
CTS
9

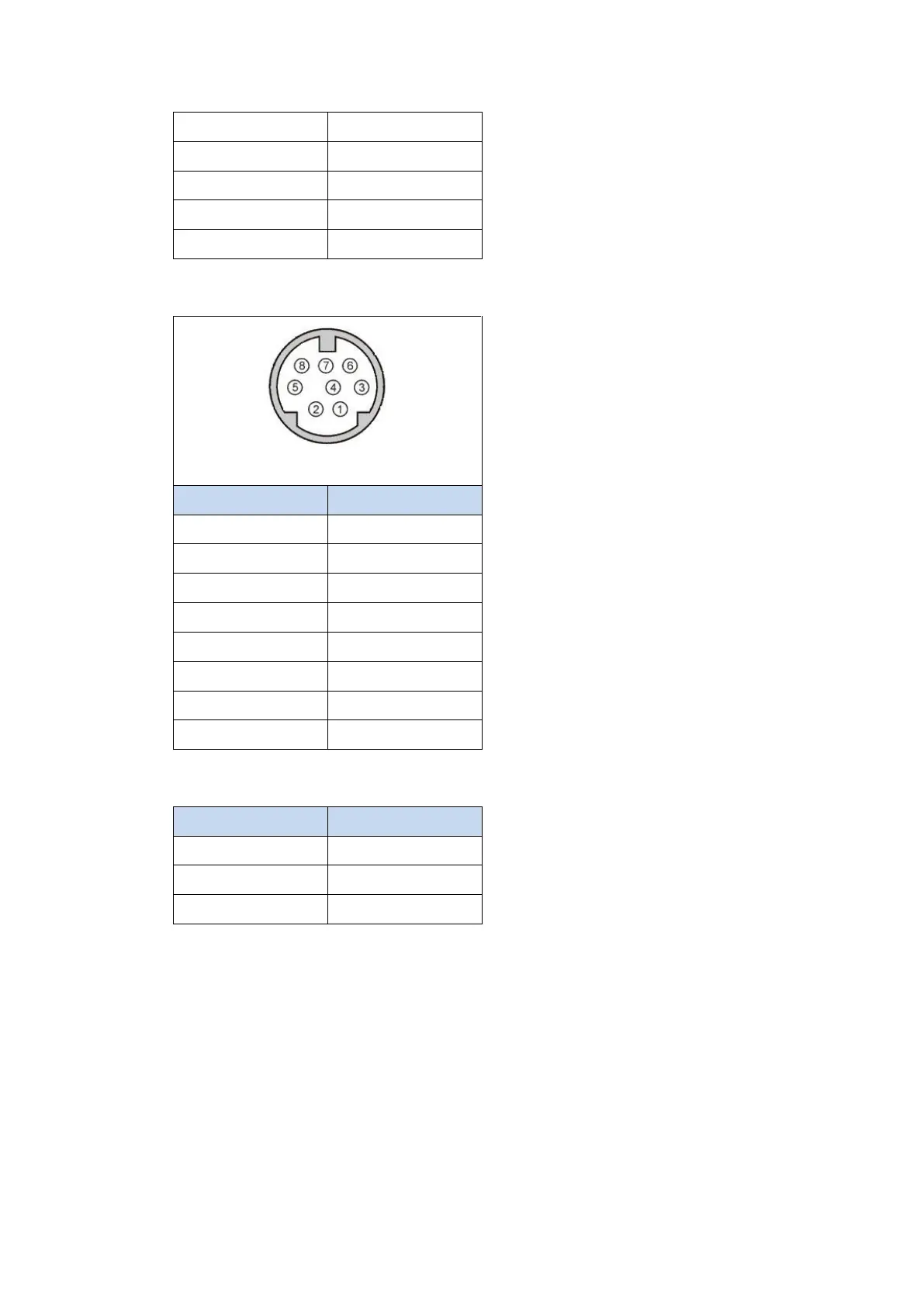

PLC RS232 Pinout
*Looking into PLC
PIN#
Signal
1
2
3
4
RXD
5
TXD
6
7
8
GND
All P5 Series
HMI COM1
PLC RS232 Port
2 RX
5 TXD
3 TX
4 RXD
5 GND
8 GND
Wiring Diagrams:All P5Series
