38
CS
Counter Discrete
1
0
199
WX
Input Discrete
16
0
360
WY
Output Relay
16
0
360
WM
Internal Relay
16
0
7664
WS
Step Relay
16
0
4080
TN
Timer Memory
16
0
511
CN
Counter Memory
16
0
199
D
Data Register
16
0
7999
SD
Special Data Register
16
8000
8511
R
Extended Register
16
0
32767
DCN
Counter Memory
32
200
255

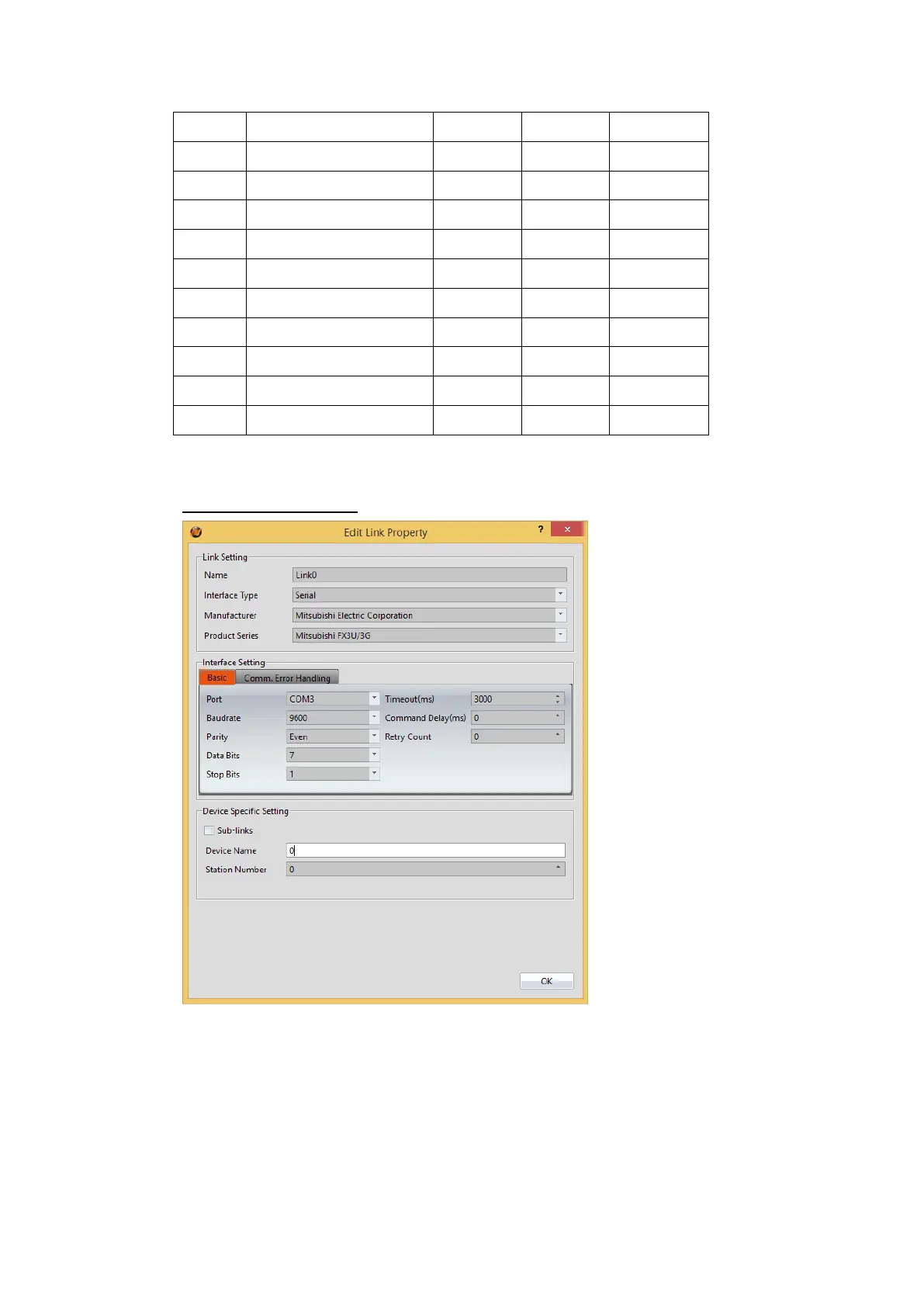

2.2.3.3 Connecting to HMI
Connecting PLC to HMI
Within the Link configuration window in FvDesigner:
Under Interface Type select Serial
Under Manufacturer select Mitsubishi Electric Corporation
Under Product Series select Mitsubishi FX3U/3G
Under Port select COM3
