FATEK P5070S - Page 106

106

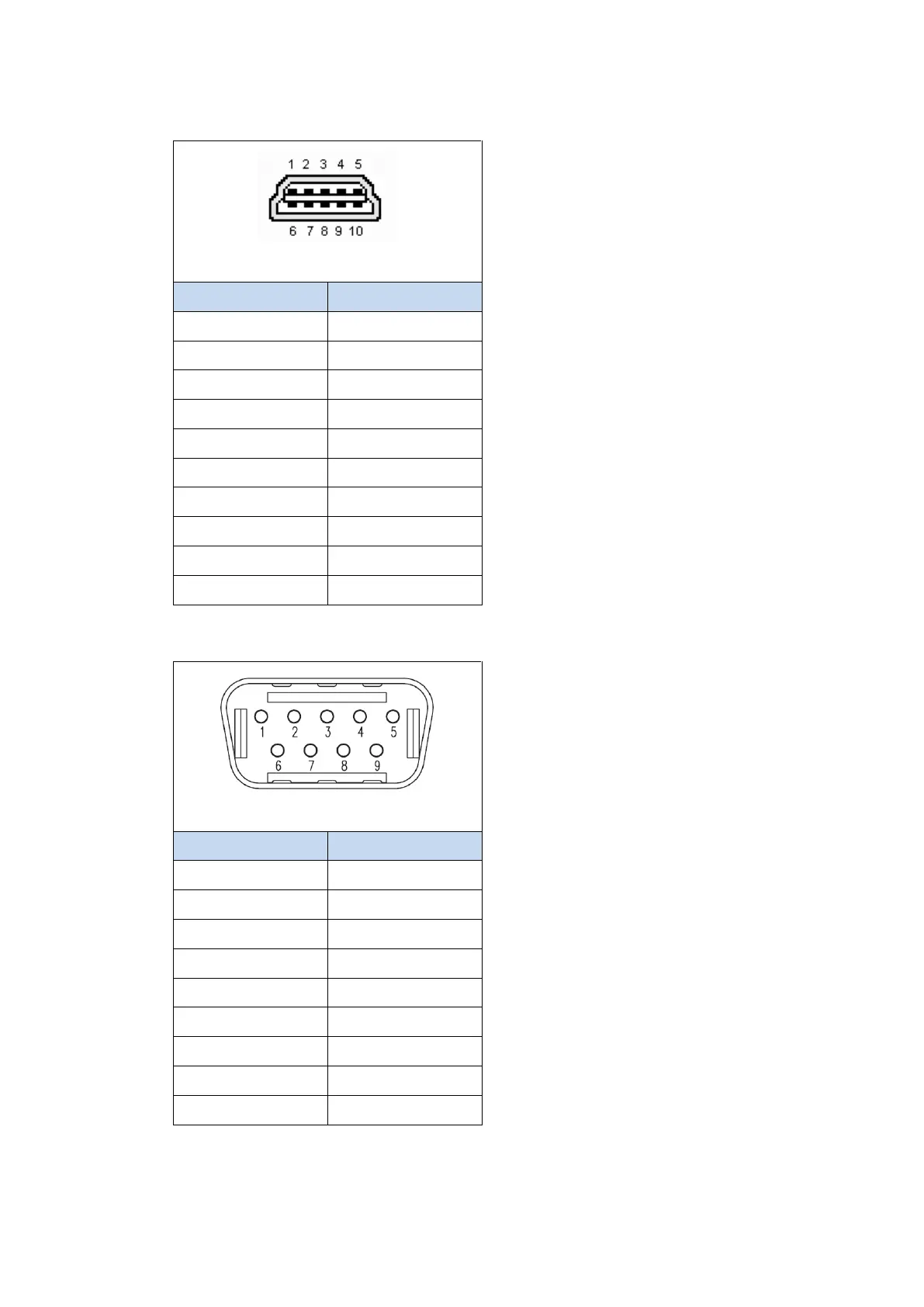

Omron PLC Pinout
*Looking into Omron PLC Cable
PIN#
Signal
1
2
3
4
RX
5
6
7
GND
8
TX
9
RTS
10
CTS
HMI COM1 Pinout
*Looking into COM1 Port
PIN#
COM1 (RS232)
1
2
RX
3
TX
4
5
GND
6
7
RTS
8
CTS
9
All P5 Series
