Note: For more detailed information please refer to the PLC manual.
Connecting PLC to HMI

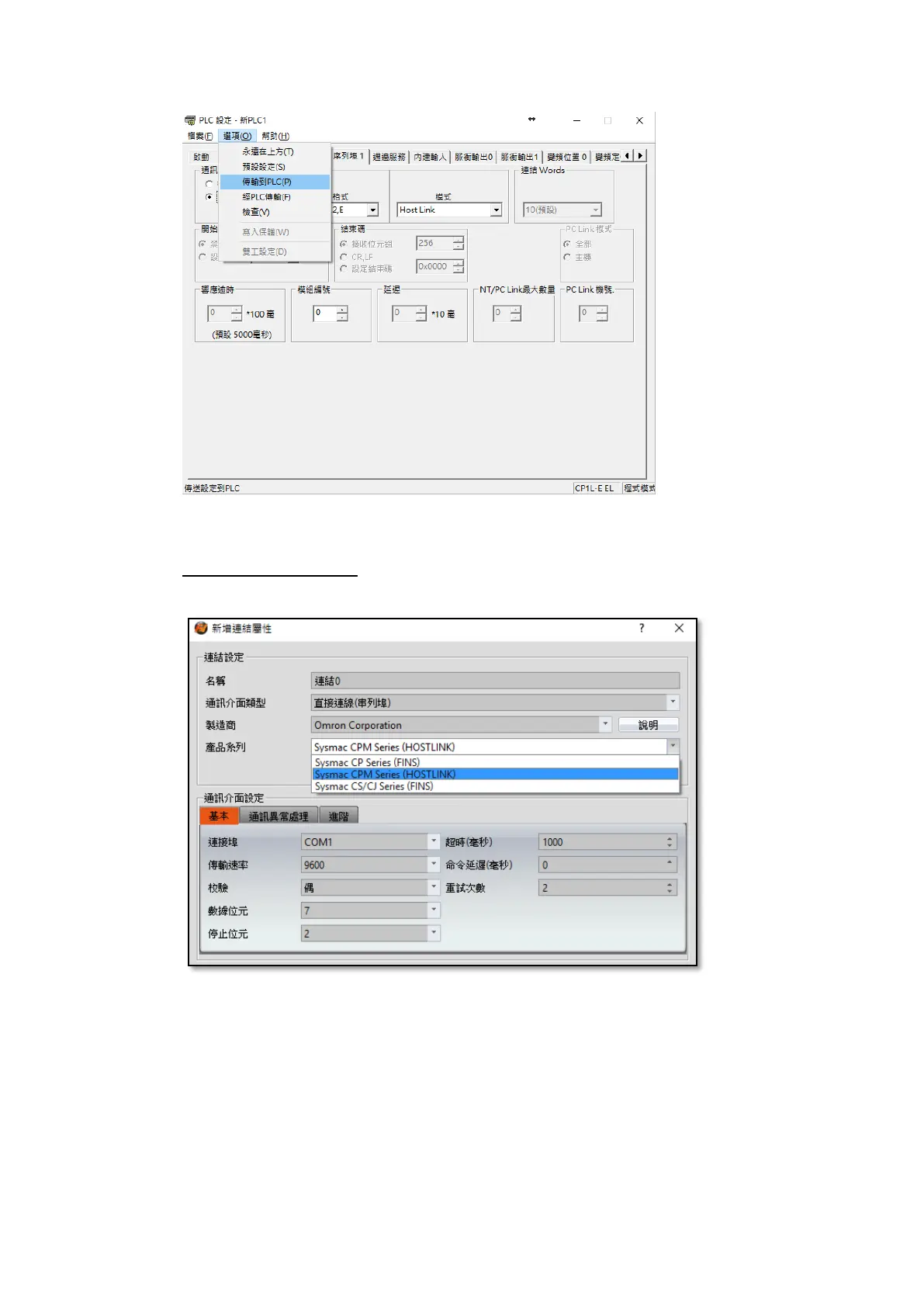

Within the Link configuration window in FvDesigner:
Under Interface Type select Serial
Under Manufacturer select Omron Corporation
Under Product Series select Sysmac CPM Series (HOSTLINK)
Under Port select COM1
2.3.5.4 Wiring Diagrams
