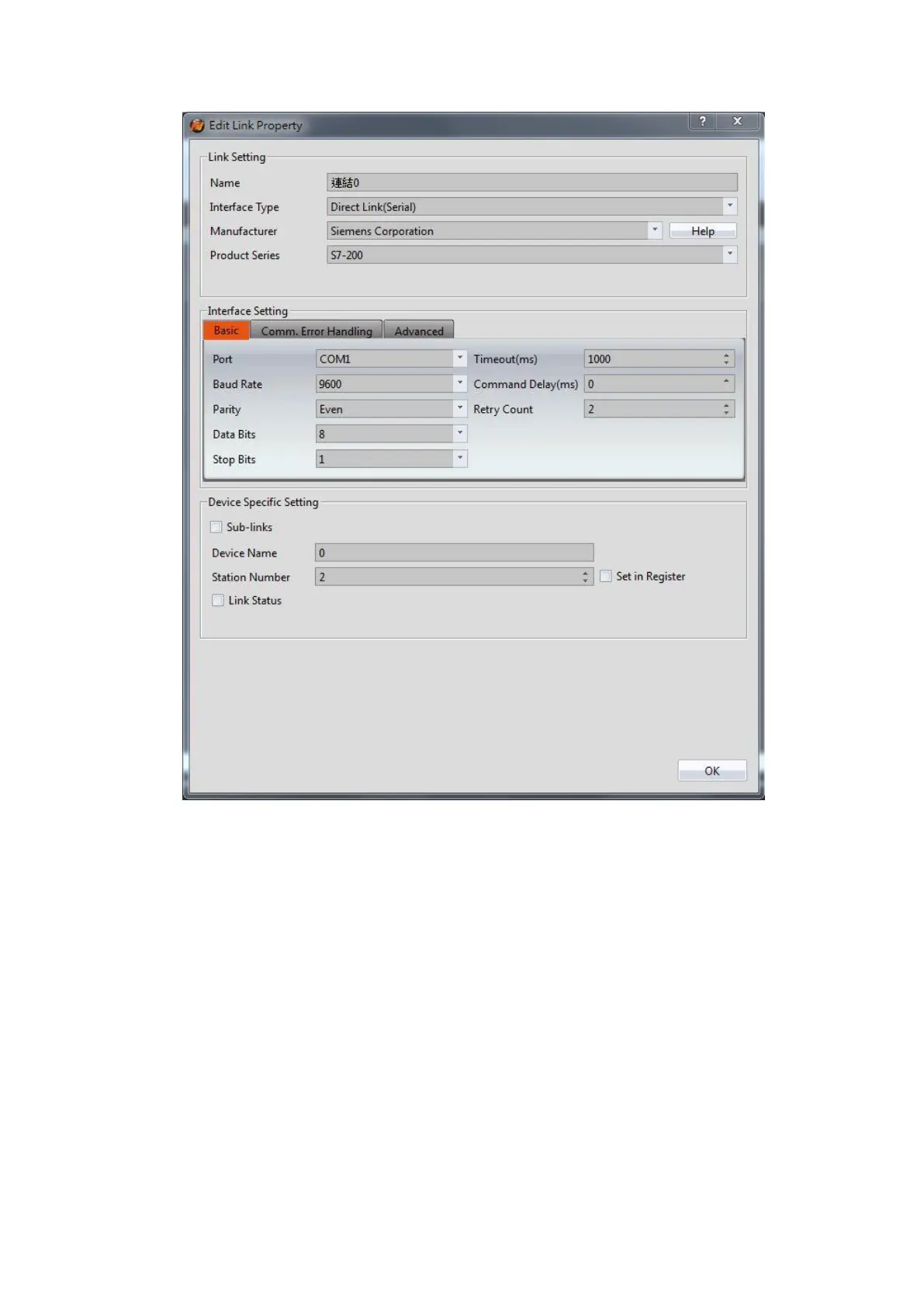

Within the Link configuration window in FvDesigner:
Under Interface Type select Serial
Under Manufacturer select Siemens Corporation
Under Product Series select S7-200
Under Port select the port number that corresponds to the RS485 connection on the
HMI.
2.4.4.4 Wiring Diagrams
PLC RS485 Port
