Under Manufacturer select Schneider
Under Product Series select MODBUS RTU
Enter the IP Address that was written into the PLC.
2.6.1.4 Wiring Diagrams

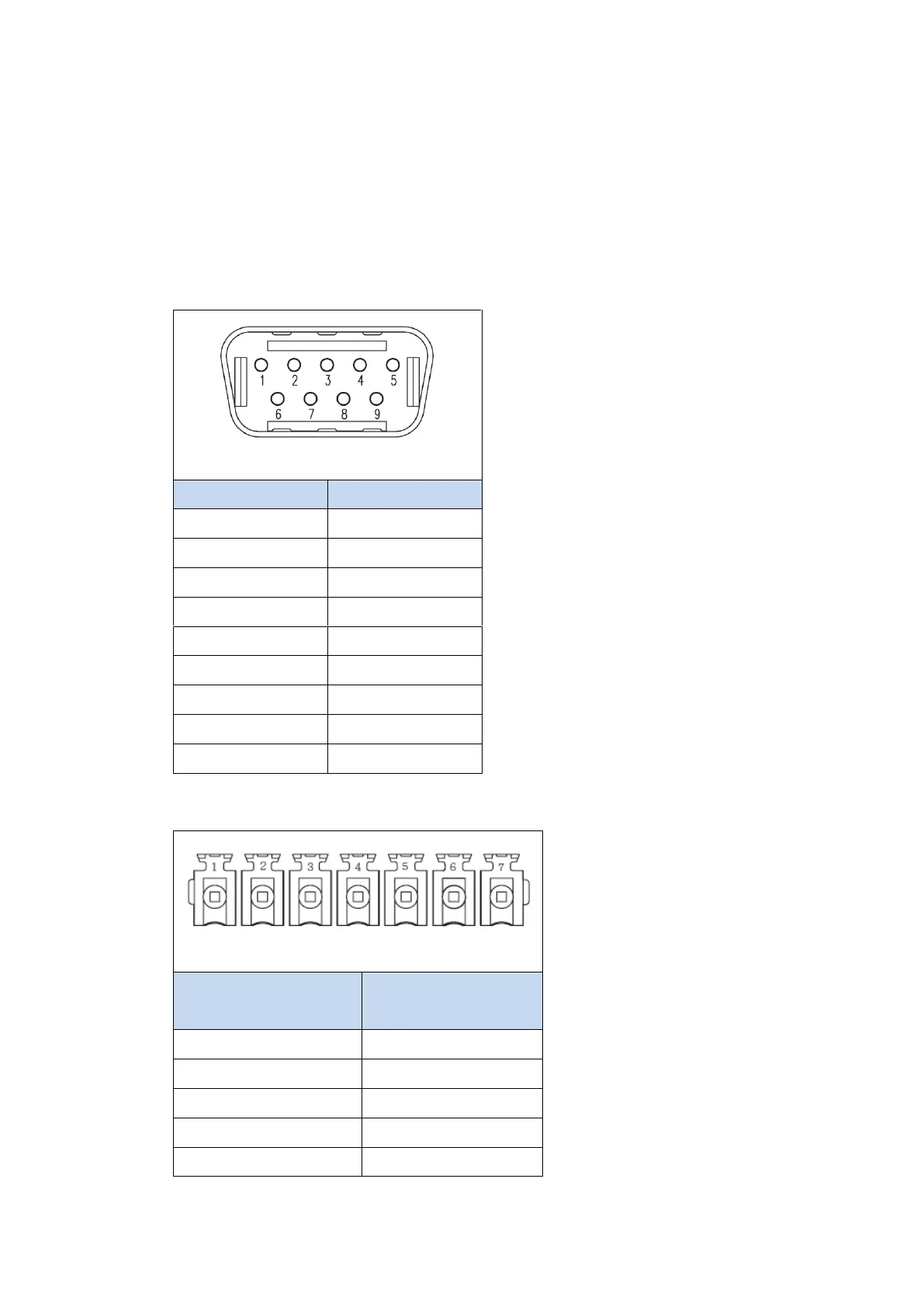

HMI (ex.P5043N) COM2 Pinout
*Looking into HMI
PIN#
COM2 (RS485)
1
DATA+
2
3
4
5
GND
6
DATA-
7
8
9
HMI (ex.P5070N1) COM3 Pinout
*Looking into HMI Device
PIN#
COM3
(RS-422/RS-485)
1
2
3
ISO_GND
4
5
