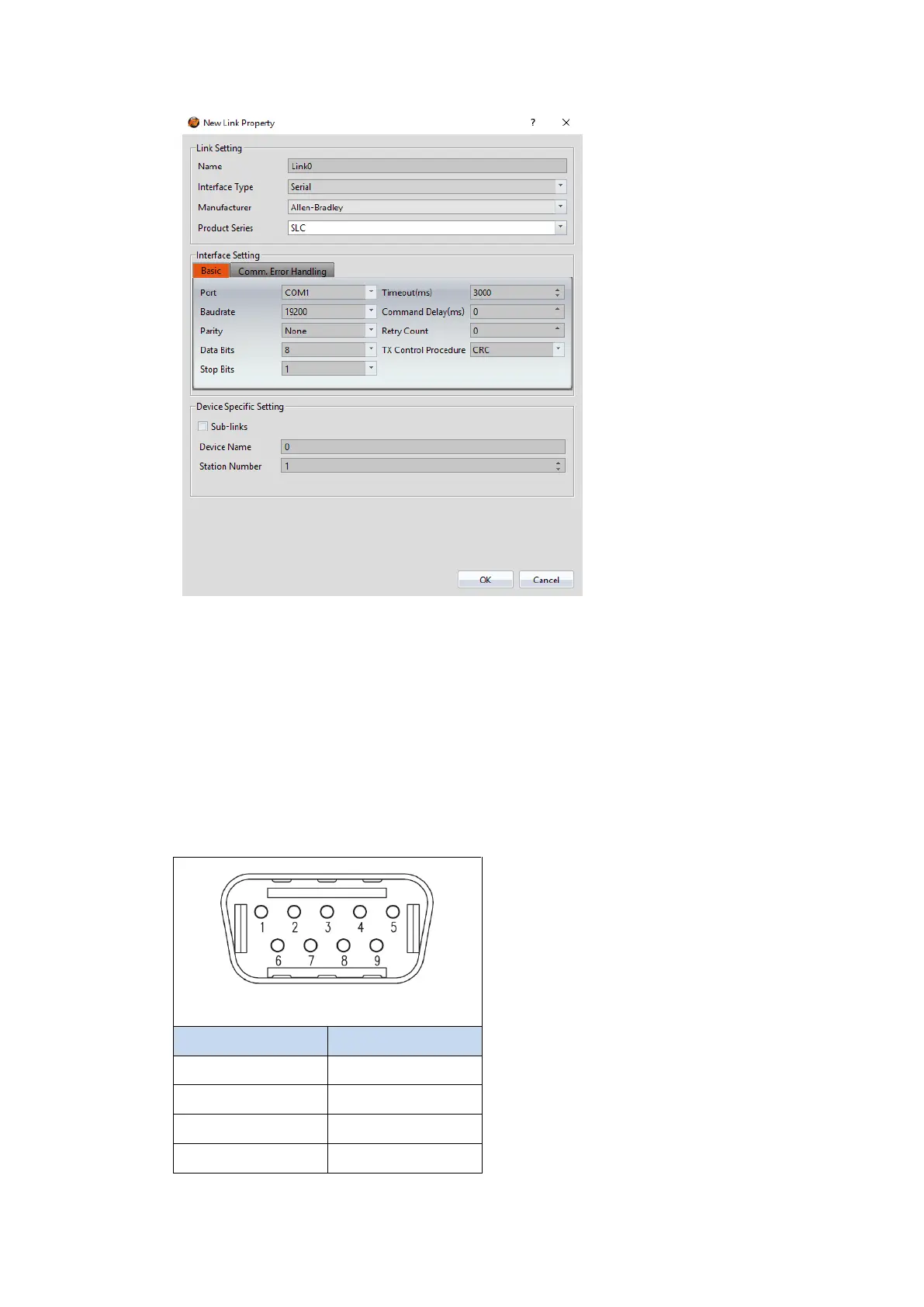

Within the Link configuration window in FvDesigner:
Under Interface Type select Serial
Under Manufacturer select Allen-Bradley
Under Product Series select SLC.
Verify the parameters match the window above.
2.7.3.4 Wiring Diagrams
HMI COM1 Pinout
*Looking into COM1 Port
PIN#
COM1 (RS232)
1
2
RX
3
TX
4
