173
3 ISO_GND
GND

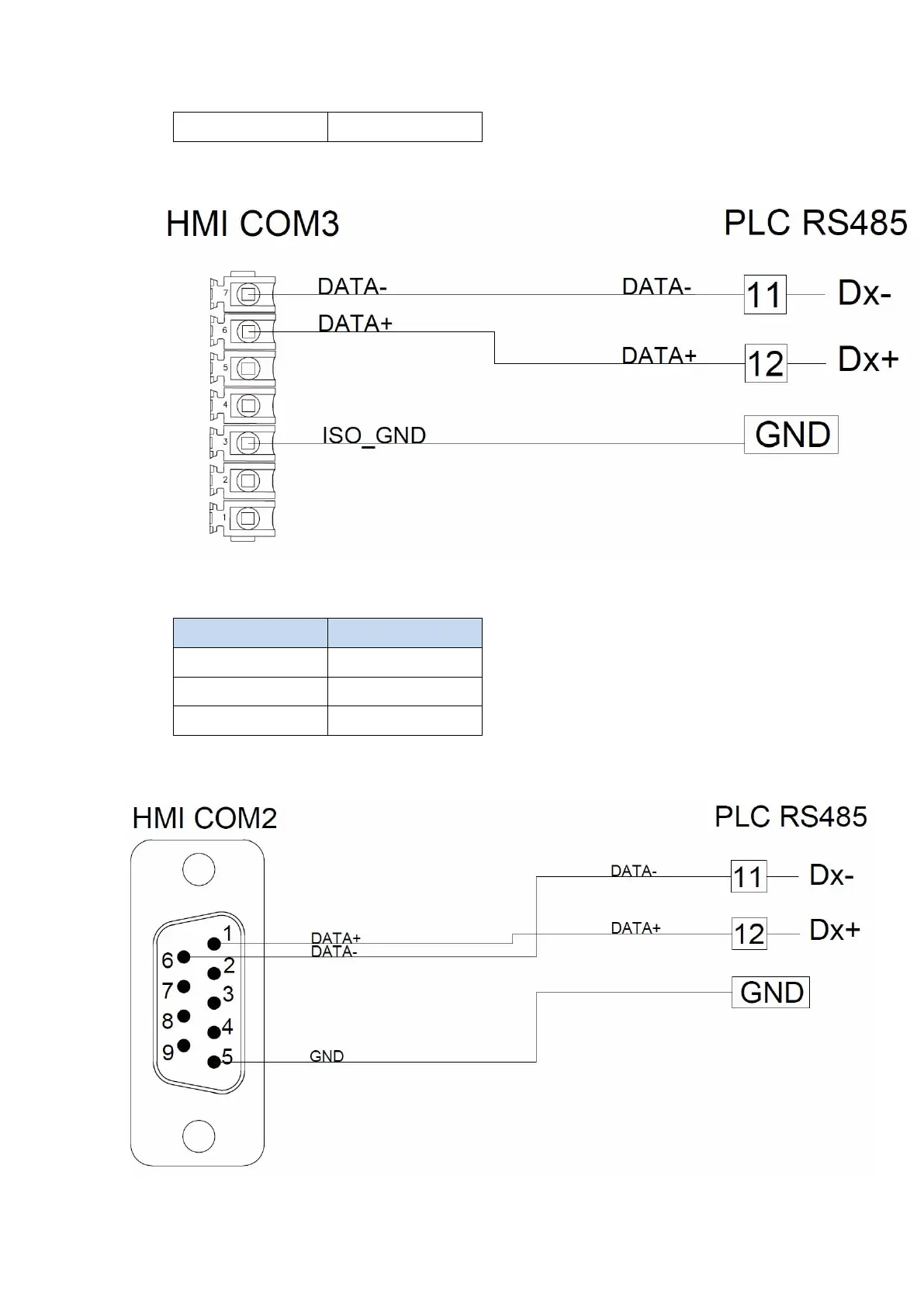

Wiring Diagrams:P5070S/P5070N/P5070N1/P5102N/P5102N1
P5043S/P5043N/P5070VS/P5102VS
HMI COM2 Port
PLC RS485 Port
1 DATA+
12 DATA+
6 DATA-
11 DATA-
5 GND
GND
Wiring Diagrams:P5043S/P5043N/P5070VS/P5102VS
