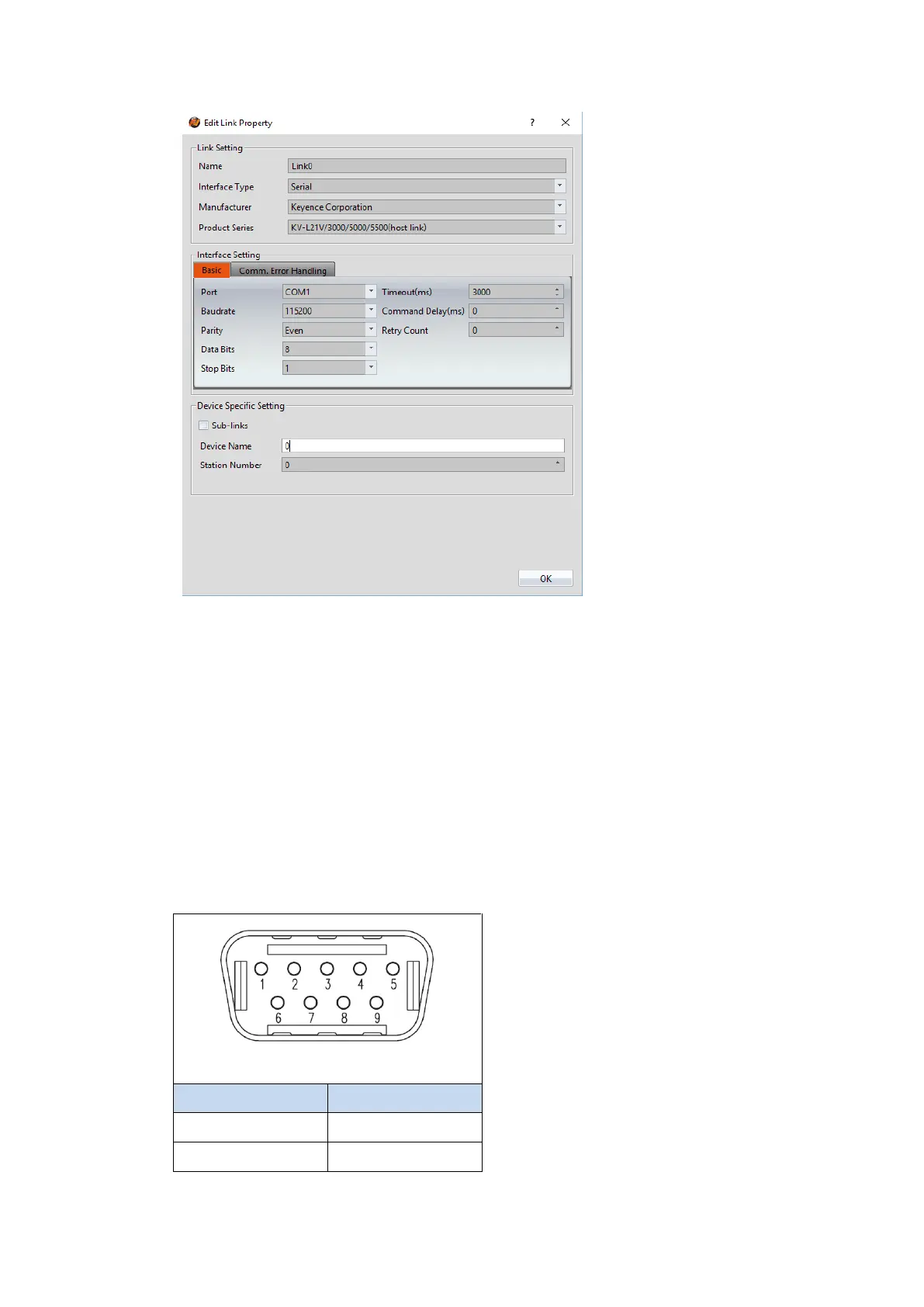

Within the Link configuration window in FvDesigner:
Under Interface Type select Serial
Under Manufacturer select Keyence Corporation
Under Product Series select KV-L21V/3000/5000/5500(host link)
Under Port select required COM port. Verify the baud rate is the same as the value set
on the PLC.
2.12.2.4 Wiring Diagrams
Using Port 1
PLC RS232 Port (PORT1)
*Looking into PLC
PIN#
Signal
1
2
RXD
