40

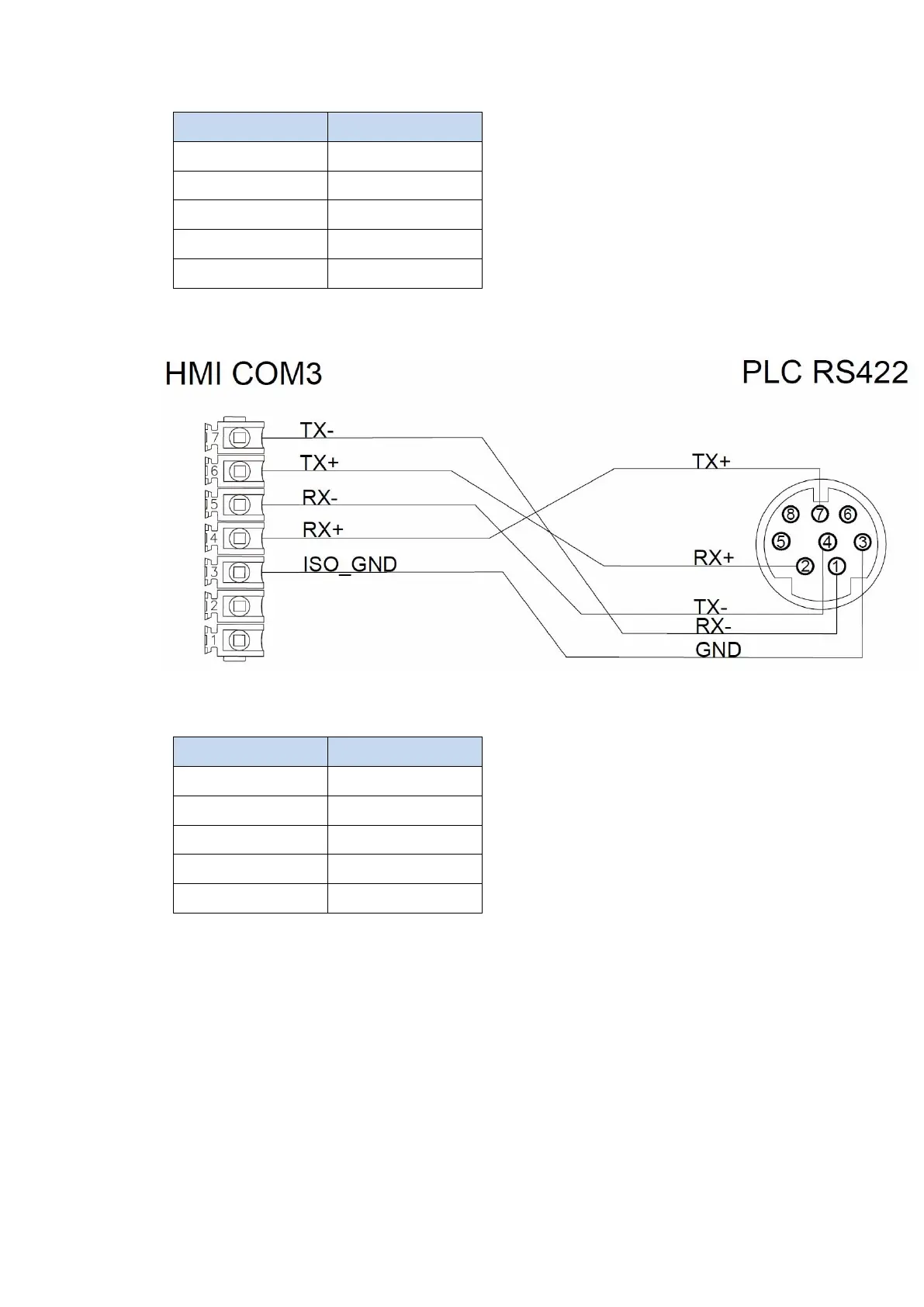

HMI COM3
PLC RS422 Port
5 RX-
4 TX-
4 RX+
7 TX+
7 TX-
1 RX-
6 TX+
2 RX+
3 ISO_GND
3 GND
Wiring Diagrams:P5070S/P5070N/P5070N1/P5102N/P5102N1
P5043S/P5043N/P5070VS/P5102VS
HMI COM2
PLC RS422 Port
9 RX-
4 TX-
4 RX+
7 TX+
6 TX-
1 RX-
1 TX+
2 RX+
5 GND
3 GND
Wiring Diagrams:P5043S/P5043N/P5070VS/P5102VS
