FATEK P5070S - Page 42

42
WM
Internal Relay
16
0
7664
WS
Step Relay
16
0
4080
TN
Timer Memory
16
0
511
CN
Counter Memory
16
0
199
D
Data Register
16
0
7999
SD
Special Data Register
16
8000
8511
R
Extended Register
16
0
32767
DCN
Counter Memory
32
200
255

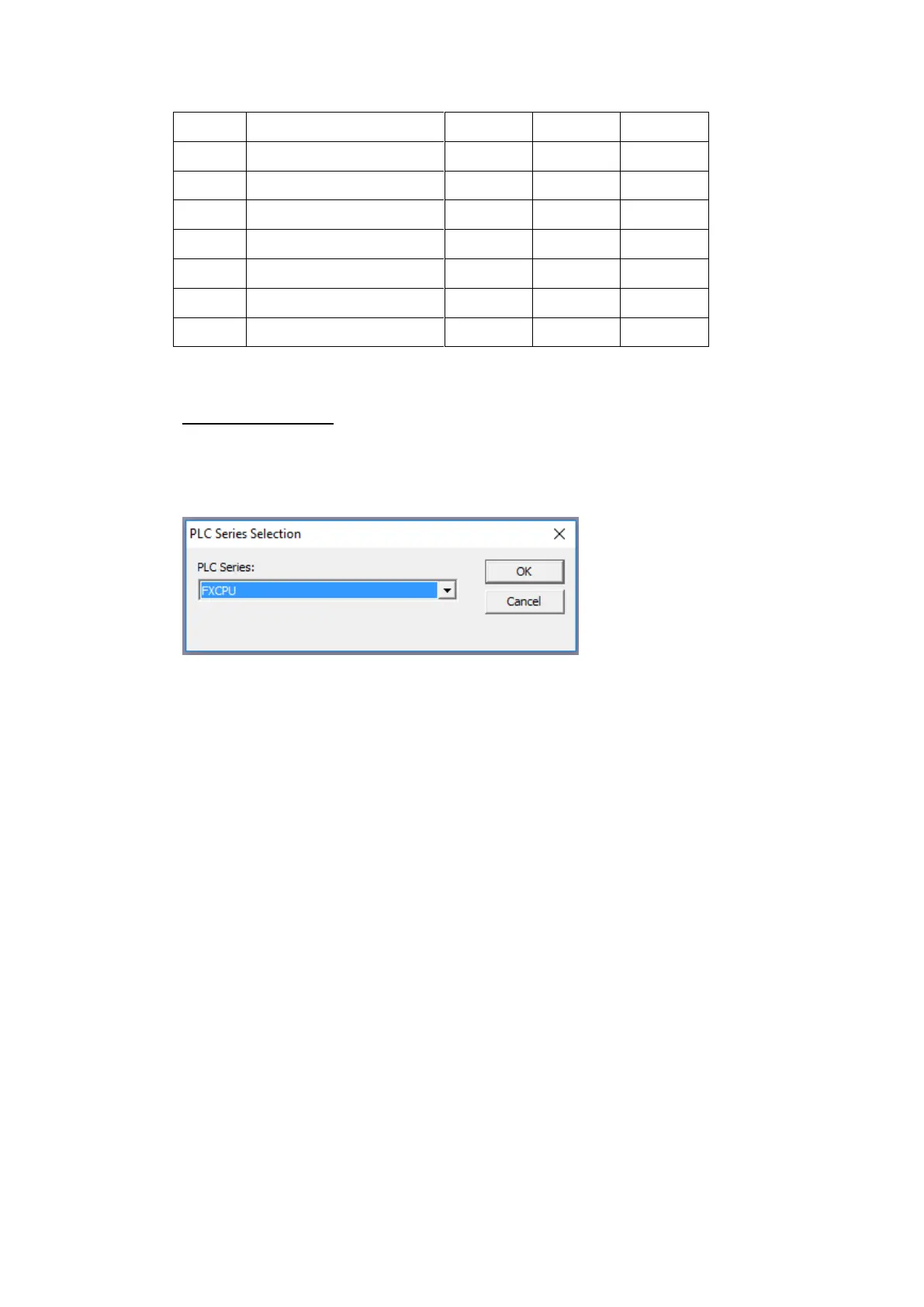

2.2.4.3 Connecting to HMI
Configuring the PLC
Use MELSOFT GX Works2 to configure the port of the PLC.
Under the Online menu option, select Read from PLC
Select the FXCPU PLC series.
Select Serial USB in the Transfer Setup Communication window.
