Chapter 16 RESP Monitoring
16.1 Overview
The monitor measures respiration according to the thoracic impedance values between two electrodes and
display a channel of RESP waveform on the screen.

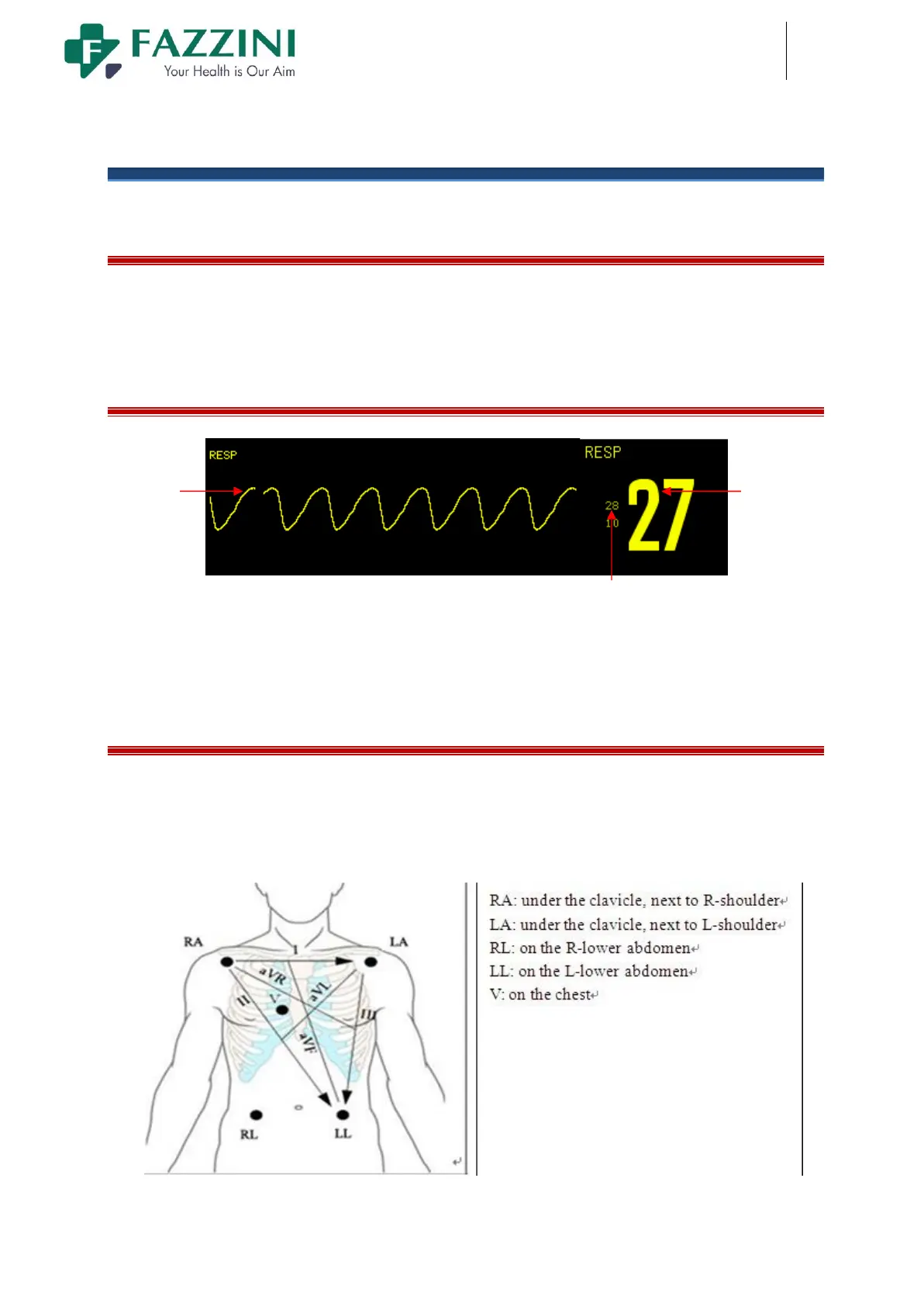

16.2 RESP Display
RESP
waveform
RESP measured
value
Figure 16-1 RESP display
16.3 Placing Electrodes for RESP Measurement
Alarm limit
RESP measurement applies the same electrodes and placement methods as that of ECG monitoring. For
example, if the 5-lead ECG cable is applied, the placement method is shown on the figure below (for the
placement methods of the ECG cable of other lead types, please refer to ECG Monitoring):
